Pulse Bag Dust Collector：
Air Box Pulse Bag Dust Collector：
Flat Bag Dust Collector：
LPLP Dust Collector：
Explosion Proof Dust Collector：

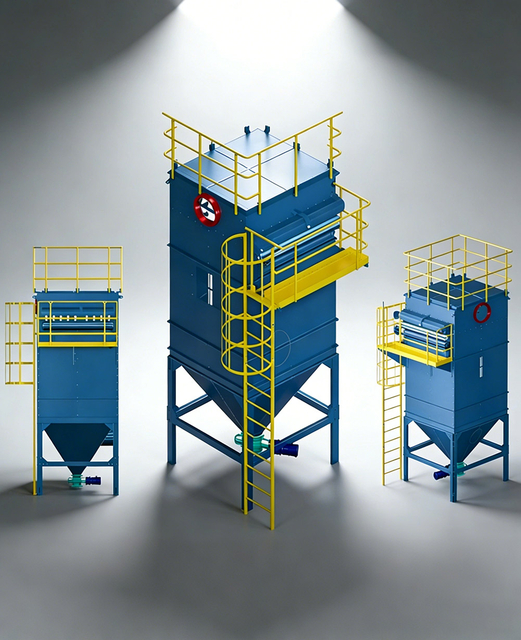

Pulse Bag Dust Collector：

The dust collector is processed by laser and electrostatic spraying, bolted and spliced using a skid-mounted method. No welding is required. It is suitable for narrow spaces, has high strength, good sealing, high efficiency, corrosion resistance, and an exquisite appearance. It simplifies the renovation process, shortens the construction period and reduces costs and risks.

Filter efficiency: ≥ 99.9%
Stable control: < 1200 Pa
Filtering wind speed: 1 - 3 m/min
Processing air volume: 120 m³/min

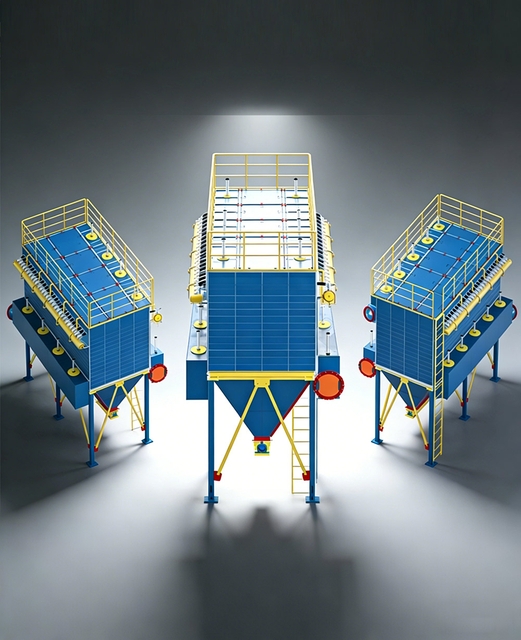

Air Box Pulse Bag Dust Collector：

Using laser processing and bolt riveting, the structure is compact and has strong sealing performance, suitable for narrow spaces. The equipment is customizable, with a processing air volume of up to several hundred thousand cubic meters per hour, occupying space that is 30% to 50% less, and maintenance efficiency increased by 50%.

Filter efficiency: ≥ 99.9%
Emission concentration: ≤ 10mg/m³
Operating resistance: < 1200Pa
Pulse valve life: > 1 million times

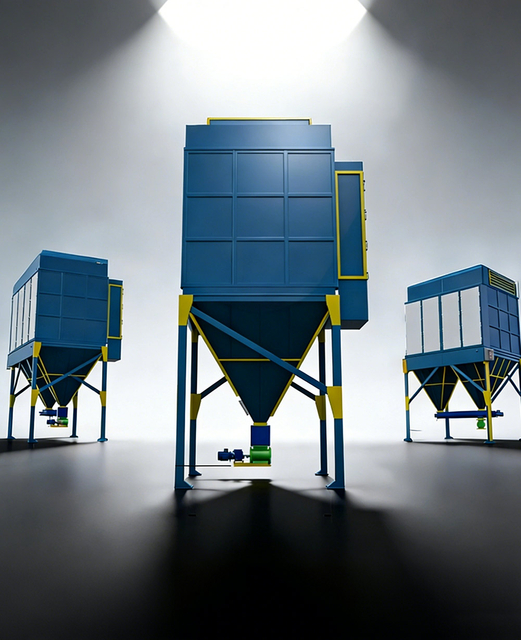

Flat Bag Dust Collector：

Under the same filtration area, the flat bag dust collector occupies less space than the round bag dust collector. It is suitable for narrow spaces and transfer belt conveyors. It has the advantages of high strength, good heat resistance, resistance to acids and alkalis, resistance to humidity, and long service life.

Filtering efficiency: ≥ 99.9%
Processing air volume: 2,210 - 10,080 m³/h
Filtering area: 18 - 56㎡
Equipment resistance: < 1,000 Pa

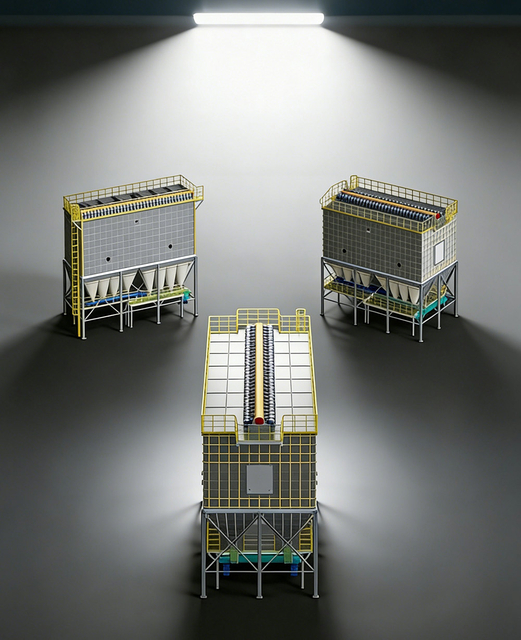

LPLP Dust Collector：

With efficient dust removal, large air volume handling, and intelligent control as the core, through modular design, low-resistance operation and material optimization, it achieves a balance between high performance and low cost, becoming the preferred equipment for industrial dust treatment.

Filter efficiency: ≥ 99.9%
Dust emission concentration: ≤ 10mg/m³
Stable operating resistance: ≤ 1500Pa
Processing air volume: 1,000,000m³/h

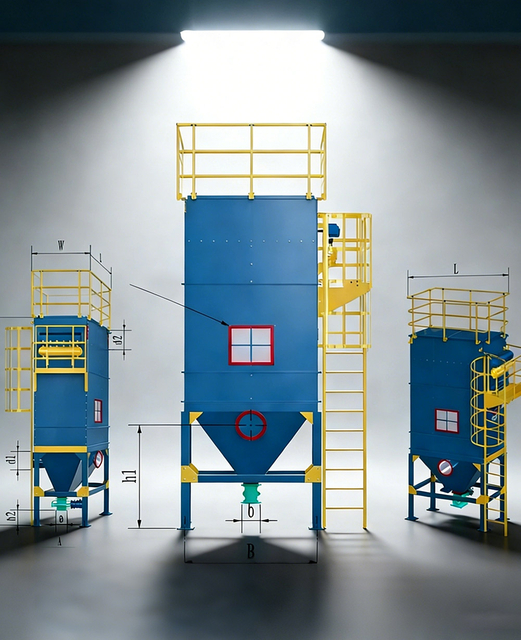

Explosion Proof Dust Collector：

Explosion-proof pulse dust removal unit is an upgraded version of the pulse bag-type dust collector. It incorporates foreign technology, featuring strong explosion resistance, simple operation, high purification efficiency, large processing capacity, and stable performance. It is suitable for dust explosion hazardous areas.

Dust removal efficiency: > 99.8%
Strong explosion resistance
Large processing gas volume

Get free product quotes

Innovate Quality, Define the Future

Technical Parameters

● Standard configuration ○ Optional configuration

Product Model		JPCMD-45A	JPCMD-54A	JPCMD-60A	JPCMD-72A	JPCMD-84A	JPCMD-96A	JPCMD-108A
Airflow Rate (m³/h)		3240	3880	4320	5184	6048	6900	7800
Airflow Range (m³/h)		3000-5100	2800-4000	3000-4680	3450-5613	4032-6550	4608-7500	5184-8424
Filter Area (m²)		45	54	60	72	84	96	108
Filtration Velocity (m/min)		0.8-1.3	0.8-1.3	0.8-1.3	0.8-1.3	0.8-1.3	0.8-1.3	0.8-1.3
Equipment Resistance (Pa)		＜800	＜800	＜1000	＜1000	＜1200	＜1200	＜1200
Dust Removal Efficiency (%)		99.9	99.9	99.9	99.9	99.9	99.9	99.9
Inlet Dust Concentration (g/m³)		＜30	＜30	＜30	＜30	＜30	＜30	＜30
Number of Pulse Valves		5	6	6	6	7	8	9
Air Consumption (m³/min)		0.3	0.4	0.4	0.4	0.4	0.5	0.5
Fan	Model	4-72No3.6A	4-72No3.6A	4-72No3.6A	4-72No-4A	4-79No4A	4-72No-4.5A	4-72No4.5A
	Airflow (m³/h)	2664-5268	2664-5268	2664-5268	4012-7419	4670-9080	5712-10562	5712-10562
	Total Pressure (Pa)	1578-989	1578-989	1578-989	2014-1320	2170-1275	2554-1618	2554-1618
	Rotational Speed (r/min)	2900	2900	2900	2900	2900	2900	2900
	Motor Power (kW)	Y160L-2(3KW)	Y160L-2(3kw)	Y160L-2(3kw)	Y132S1-2(5.5kw)	Y132S1-2(5.5kw)	Y132S2-2(7.5kw)	Y132S2-2(7.5kw)
Ash discharge valve	Ash Discharge Valve Size (mm)	200*200	200*200	200*200	200*200	200*200	200*200	200*200
	Gearbox Model	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55
	Rotational Speed (r/min)	48	48	48	48	48	48	48
	Motor Power (kW)	0.55	0.55	0.55	0.55	0.55	0.55	0.55
Operating temperature (°C)		Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃
Filter bag specifications (mm)		φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500
Screw conveyor		○	○	○	○	○	○	○
Vibrating motor		○	○	○	○	○	○	○
Differential pressure transmitter		○	○	○	○	○	○	○
Temperature transmitter		○	○	○	○	○	○	○
Fire sprinkler system		○	○	○	○	○	○	○
Level gauge		○	○	○	○	○	○	○
Audible and visual alarm		○	○	○	○	○	○	○
Weight (kg)		2800	2950	3130	3250	3350	3500	3650
Overall dimensions (LWH) mm		109019004900	129019005050	134419685100	129623205300	146423205300	163223205300	180023205300

●Standard configuration ○Optional configuration

Product Model		JPCMD-120A	JPCMD-144A	JPCMD-168A	JPCMD-180A	JPCMD-216A	JPCMD-252A	JPCMD-288A	JPCMD-300A	JPCMD-360A
Airflow Rate (m³/h)		8640	10400	12096	12960	15500	18144	20730	22000	26000
Airflow Range (m³/h)		6000-9500	7000-11232	8064-13104	8640-14040	10400-16848	15120-20400	17280-22464	18000-23400	22000-30000
Filter Area (m²)		120	144	168	180	216	252	288	300	360
Filtration Velocity (m/min)		0.8-1.3	0.8-1.3	0.8-1.3	0.8-1.3	0.8-1.3	1.0-1.3	1.0-1.3	1.0-1.3	1.0-1.3
Equipment Resistance (Pa)		＜1200	＜1200	＜1200	＜1200	＜1200	＜1200	＜1200	＜1200	＜1200
Dust Removal Efficiency (%)		99.9	99.9	99.9	99.9	99.9	99.9	99.9	99.9	99.9
Inlet Dust Concentration (g/m³)		＜30	＜30	＜30	＜30	＜30	＜30	＜30	＜30	＜30
Number of Pulse Valves		10	12	14	15	18	21	24	25	30
Air Consumption (m³/min)		0.6	0.7	0.8	0.8	1	1.2	1.3	1.5	1.5
Fan	Model	4-79No4.5A	4-72No5A	4-72No5A	4-79No5A	4-72No6C	4-72No-8C	4-72No8C	4-72No8C	4-72No8C
	Airflow (m³/h)	6640-12920	7728-15455	7728-15455	9100-17720	10314-20628	17463-22435	17463-22435	19646-25240	24982-32380
	Total Pressure (Pa)	2695-1617	3187-2019	3187-2019	3334-2000	2734-1733	2478-2390	2478-2390	3143-3032	2303-1816
	Rotational Speed (r/min)	2900	2900	2900	2900	2240	1600	1600	1800	1600
	Motor Power (kW)	Y160M1-2(11kw)	Y160M2-2(15kw)	Y160M2-2(15kw)	Y160M2-2(15kw)	Y60L-4(15kw)	Y180M-2(22kw)	Y180M-2(22kw)	Y200L 1-2(30kw)	Y200L 1-2(30kw)
Ash discharge valve	Ash Discharge Valve Size (mm)	200*200	200*200	200*200	200*200	200*200	200*200	300*300	300*300	300*300
	Gearbox Model	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.75	BLD1-29-0.75	BLD1-29-0.75
	Rotational Speed (r/min)	48	48	48	48	48	48	48	48	48
	Motor Power (kW)	0.55	0.55	0.55	0.55	0.55	0.55	0.75	0.75	0.75
Operating temperature (°C)		Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃	Continuous: <130℃, Instantaneous: 150℃
Filter bag specifications (mm)		φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500
Screw conveyor		○	○	○	●	●	●	●	●	●
Vibrating motor		○	○	○	●	●	●	●	●	●
Differential pressure transmitter		○	○	○	○	○	○	○	○	○
Temperature transmitter		○	○	○	○	○	○	○	○	○
Fire sprinkler system		○	○	○	○	○	○	○	○	○
Level gauge		○	○	○	○	○	○	○	○	○
Audible and visual alarm		○	○	○	○	○	○	○	○	○
Weight (kg)		3800	4100	4250	4500	4600	5000	5300	5600	6000
Overall dimensions (LWH) mm		196823205300	230423205300	26402325500	280823205540	331223205540	381623205540	432023205650	448823205650	532823205650

Requirements for filter bag weight and air permeability under different cleaning methods

Cleaning Method	Weight (g/m²)	Air Permeability (L/dm²·min @ 200 Pa)
Rapping cleaning	300–350	400–600
Shaking and reverse-air cleaning	350–450	250–400
Low-pressure cleaning	400–500	150–350
Pulse-jet cleaning	500–650	20–200

Types of Dust Filter Bags and Their Application Conditions

Fiber Type	Product Code	Continuous Temp.	Surge Temp.	Common Industries and Applications	Remarks
Polyester	PET	130℃	150℃	Used in mining, limestone industry, raw cement mill, grinding, packaging, etc.; iron-making, sintering, electric-arc furnace dust collection in steel industry; alumina conveying, electrolytic aluminium flue gas, non-ferrous metal smelting flue gas, as well as wood processing, grain processing, pharmaceutical industries, etc.	Good oxidation resistance; general acid/alkali resistance. Service life may be affected by hydrolysis at higher temperatures.
Homopolyacrylonitrile	Homo Acrylic	125℃	140℃	Used for dust collection in detergent, spray dryer, coal mill, power plant desulfurisation, etc.	Good hydrolysis resistance.
Polyphenylene Sulfide	PPS	160℃	190℃	Used for dust collection in coal-fired boilers, waste incineration, metal smelting, chemical industry, etc., with low oxidising atmospheres.	Poor oxidation resistance, but excellent acid/alkali and hydrolysis resistance.
Meta-aramid	Aramid	204℃	250℃	Used for dust collection in asphalt mixing plants, non-ferrous metal smelting, ceramics, glass, cement industry kiln inlets, blast furnace gas in steel plants, etc.	Service life may be affected by hydrolysis at higher temperatures.
Polyimide	P84/PI	240℃	260℃	Used for dust collection in chemical, metal smelting, waste incineration, cement kiln outlet, coal-fired boilers, etc., with medium-corrosive flue gases.	Excellent resistance to transient high temperatures.
Polytetrafluoroethylene	PTFE	240℃	260℃	Used for dust collection in chemical, metal smelting, waste incineration, cement kiln outlet, coal-fired boilers, etc., with highly corrosive flue gases.	Excellent resistance to all types of chemical corrosion.
Fiberglass	GL	200℃	280℃	Used for cement kiln outlet, blast furnace in steel plants, industrial boilers.	Excellent oxidation resistance; general resistance to mechanical stress.
