Cyclone Dust Collector

Industrial cyclone dust collector is also called cyclone dust collector or cyclone dust collection system.

● Simple structure, easy to manufacture;
● Installation and maintenance management;
● Low equipment investment and operating costs;
● Able to handle large flue gas flow.

Availability:

Quantity:



Inquire Add to Basket

Product Description

We're professional industrial cyclone dust collector manufacturers and suppliers in China, to buy or wholesale dust collector with cyclone from our factory. For quotation or if you have any questions, contact us now for customized cyclone for dust collector and price.

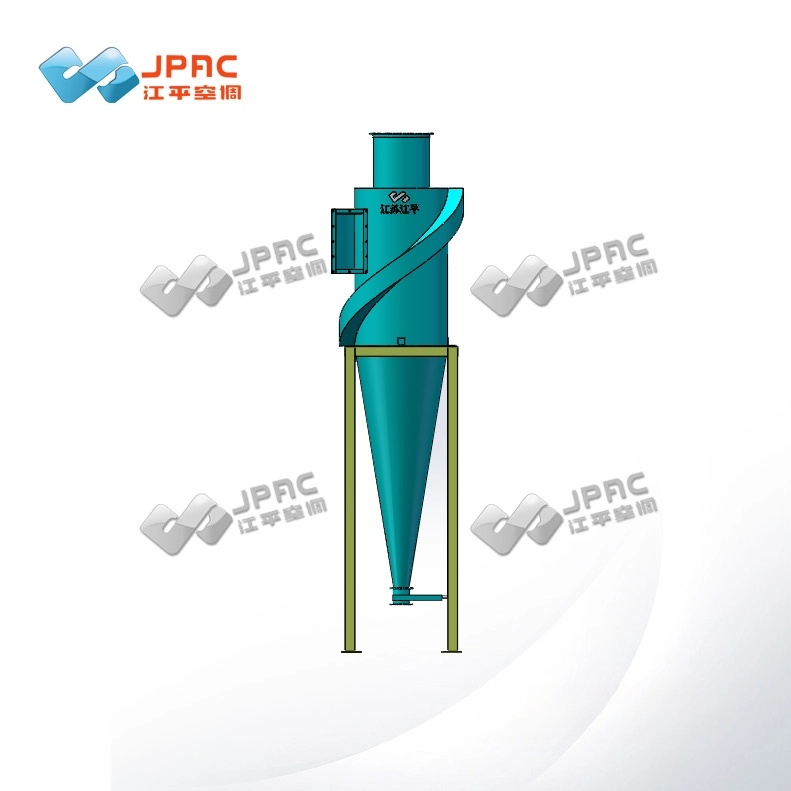

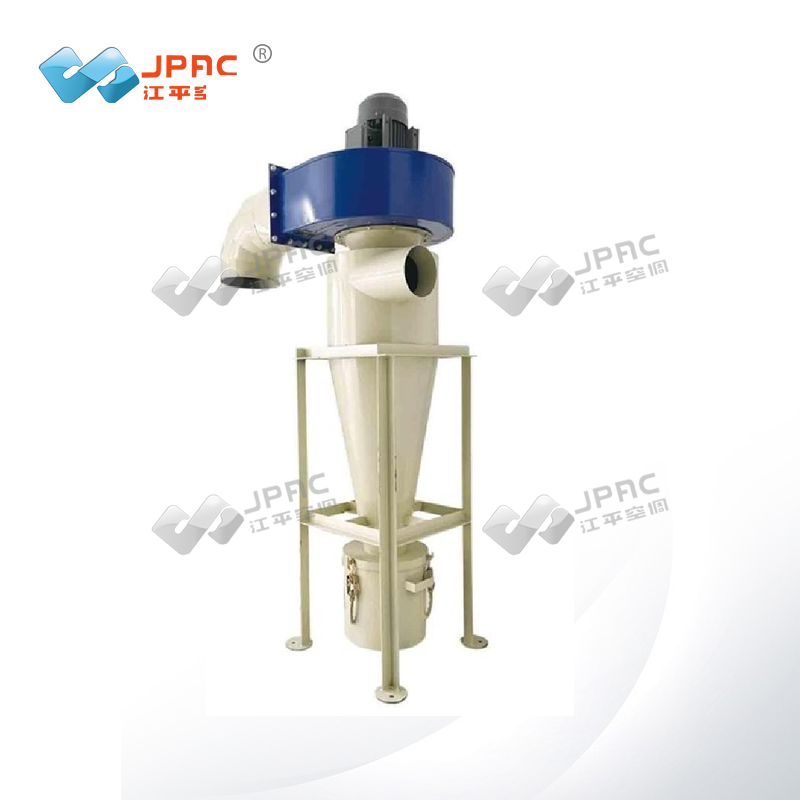

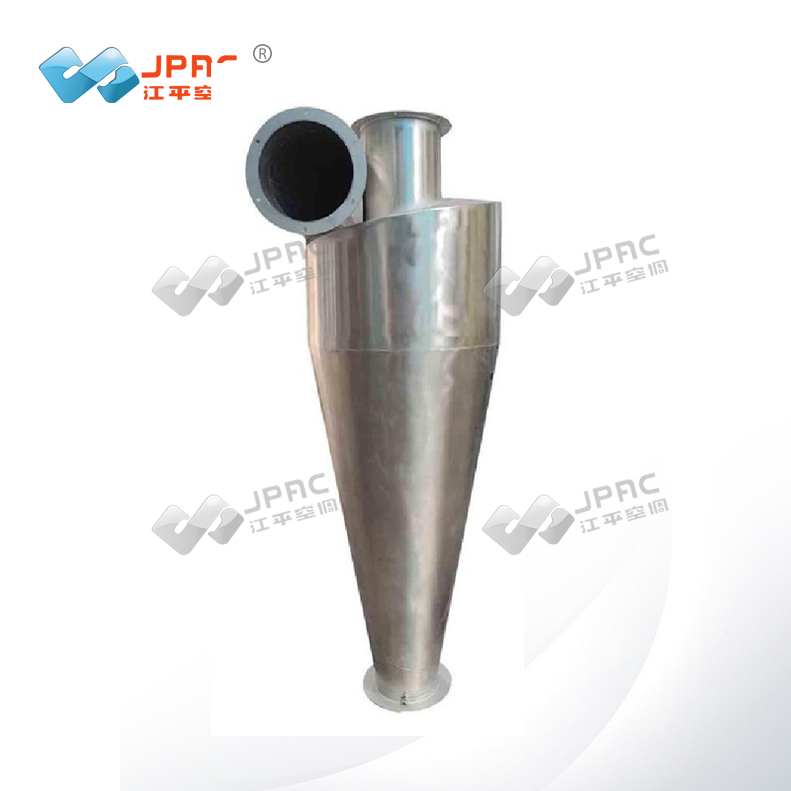

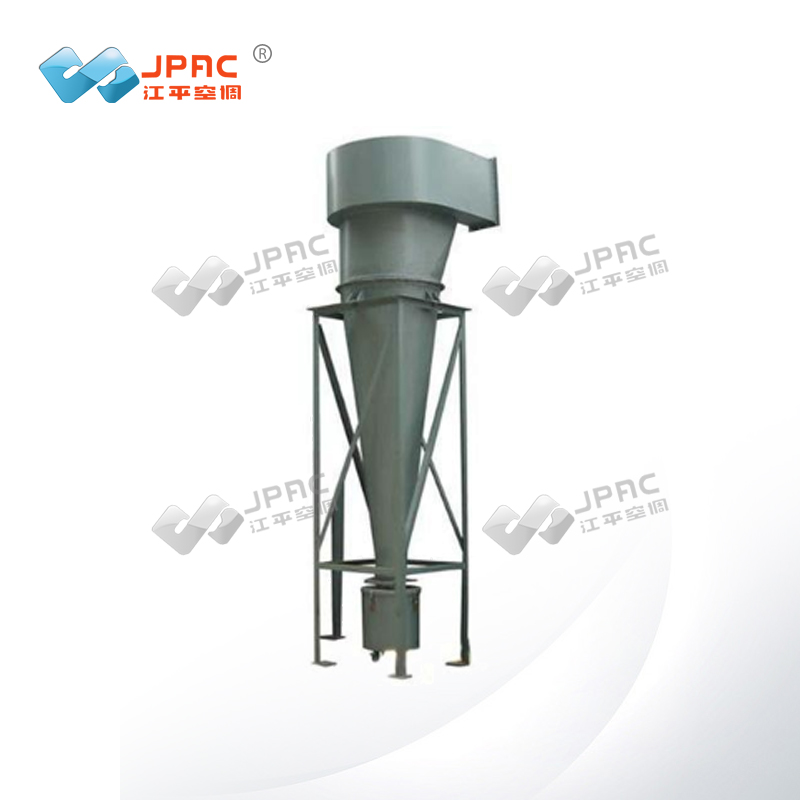

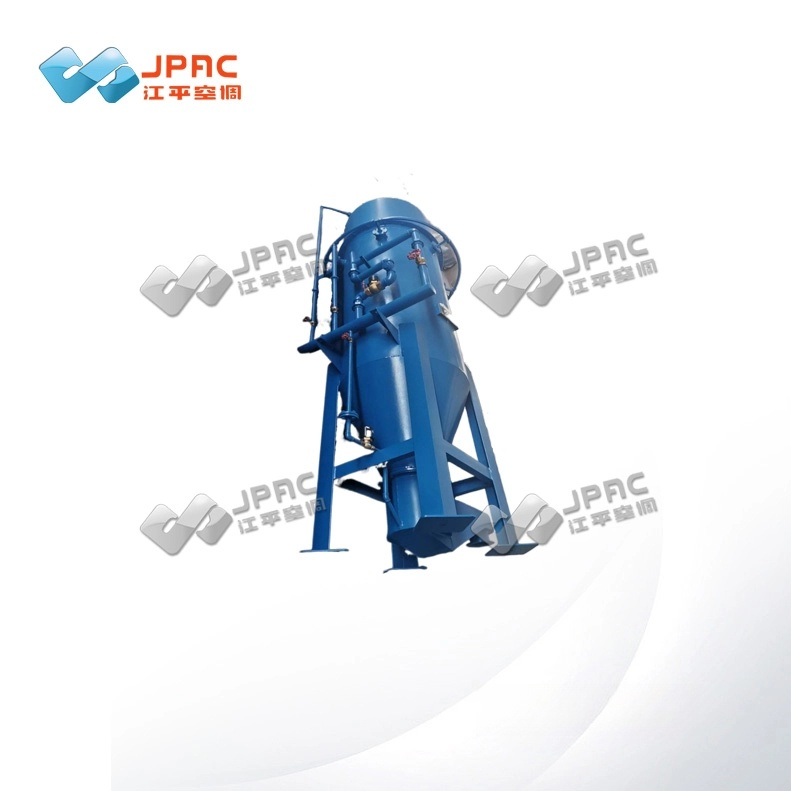

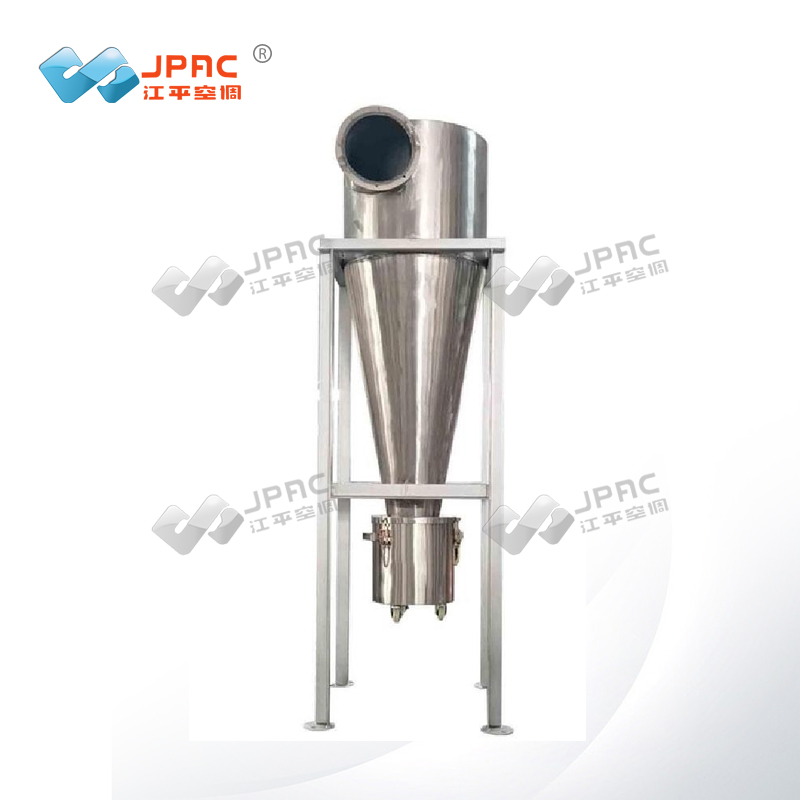

Appearance Reference

Working Principle

Cyclone dust collector is composed of air inlet pipe, exhaust pipe, cylinder, cone and ash hopper. Cyclone dust collector is simple in structure, easy to manufacture, install, maintain and manage, and low in equipment investment and operation cost. It has been widely used to separate solid and liquid particles from airflow or solid particles from liquid.

Product Features

Simple structure, small floor space, low investment, good and convenient operation and maintenance, moderate pressure loss and little power consumption. It can be used for high temperature, high pressure and corrosive gases and can recover dry particles, with an efficiency of about 80%. However, the efficiency of collecting particles less than 5μm is not high, and it is generally used for multi-stage dust removal and pre-dust removal when the dust concentration is high.

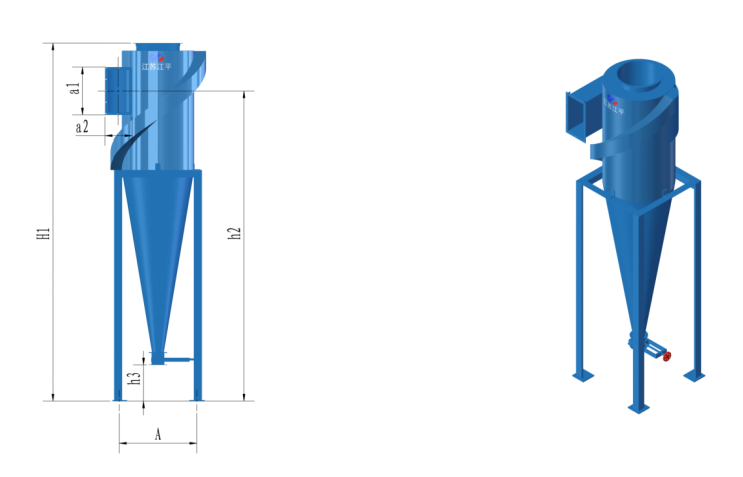

Technical Parameters

Product Model Airflow Rate (m³/h)	JPCXF-300	JPCXF-400	JPCXF-500	JPCXF-600	JPCXF-800	JPCXF-1000	JPCXF-1200	JPCXF-1300	JPCXF-1500	JPCXF-1800	JPCXF-2000	JPCXF-2200
Product Model Airflow Rate (m³/h)	JPCXF-300	JPCXF-400	JPCXF-500	JPCXF-600	JPCXF-800	JPCXF-1000	JPCXF-1200	JPCXF-1300	JPCXF-1500	JPCXF-1800	JPCXF-2000	JPCXF-2200
Filtration Velocity (m/s)	600~1000	1300~2000	2000~3200	3200~4600	4600~8200	8200~12000	12000~18000	18000~21000	21000~28000	33000~41000	41000~50000	50000~61000
Operating Temperature (°C)	18	18	18	18	18	18	18	18	18	18	18	18
Cylinder Diameter (D) mm	＜300	＜300	＜300	＜300	＜300	＜300	＜300	＜300	＜300	＜300	＜300	＜300
Cylinder Height (H2) mm	350	500	660	750	1000	1220	1490	1610	1860	2300	2480	2750
Cone Height (H3) mm	530	750	990	1130	1510	1830	2240	2400	2800	3380	3700	4200
Inlet Port Long Side (a1) mm	700	990	1320	1500	2000	2430	3000	3220	3700	4500	4970	5500
Inlet Port Short Side (a2) mm	175	250	320	380	500	600	750	800	930	1120	1250	1370
Height from Ground (h2) mm	90	125	160	190	250	300	370	400	470	560	620	690
Outlet Port Diameter (d1) mm	930	1440	2010	2330	3210	3960	4940	5320	6200	7580	8370	9400
Height from Ground (H1) mm	175	250	320	380	500	600	745	805	930	1120	1250	1370
Discharge Port Diameter (d2) mm	1230	1740	2310	2630	3510	4260	5240	5620	6500	7880	8670	9700
Height from Ground (h3) mm	200	200	200	200	200	300	300	300	400	400	400	500
Base Dimensions (A*B) mm	400	400	400	400	400	400	400	400	400	400	400	400
Centrifugal Fan	400*400	700*700	760*760	800*800	1200*1200	1420*1420	1690*1690	1810*1810	2060*2060	2500*2500	2680*2680	2950*2950
Explosion Vent	○	○	○	○	○	○	○	○	○	○	○	○
Explosion-proof Device	-	-	-	-	○	○	○	○	○	○	○	○
Temperature Sensor	○	○	○	○	○	○	○	○	○	○	○	○
Gravity Ash Discharge Device	○	○	○	○	○	○	○	○	○	○	○	○
Rotary Valve	●	●	●	●	●	●	●	●	●	●	●	●
Pneumatic Conveying System	○	○	○	○	○	○	○	○	○	○	○	○
Total Equipment Weight (kg)	○	○	○	○	○	○	○	○	○	○	○	○
Product Model	40	55	75	95	190	310	430	520	680	1200	1500	1800

●Standard Configuration ○Optional Configurations

Industrial cyclone dust collector manufacturer

JPAC focuses on providing high-quality industrial cyclone dust collector and excellent service since 1982. We are a professional industrial cyclone dust collector manufacturer and factory of 43000M² which mainly produce central air conditioning units and dust collector products for around 44 years’ experience. JPAC provides you with industrial cyclone dust collector wholesale, customization, design, packaging, industry solutions and OEM & ODM service.

Where to buy industrial cyclone dust collector?

If you have any questions about industrial cyclone dust collector, cyclone dust collector, cyclone dust collection system, cyclone collector, large cyclone dust collector, industrial cyclone dust separator, multi cyclone dust collector, please don't hesitate to contact us at logos@jsjpxhj.com. We will provide detailed information and technical support about central air conditioning units and dust collectors’ features, specifications, solutions and customization options... Welcome you to visit our factory!
