Screw conveyor is a continuous conveying equipment that uses spiral rotation to move materials. It is suitable for conveying flour, cereals, cement, fertilizers, ash, sand, gravel, coal powder, small coal and other materials. Due to the small effective circulation area in the body, the screw conveyor is not suitable for conveying materials that are perishable, too sticky, and easy to agglomerate. The screw conveyor is suitable for horizontal and small inclination arrangement, and the inclination angle should not exceed 20°.

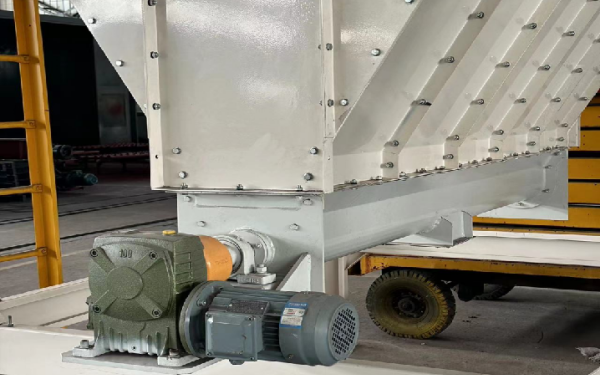

The screw conveyor of the pulse bag dust collector is designed and manufactured in accordance with the JB/T7679-95 'Screw Conveyor' standard. The head and tail bearings are moved outside the shell. The hanging bearings use sliding bearings and are equipped with dust-proof sealing devices. The bearings generally use powder metallurgy to transport cement. Felt bearing bushes are used for the hanging shaft (extra-long screw machine) and the spiral shaft. The hanging shaft (extra long screw machine) and the spiral shaft are connected by a slider. When disassembling the screw, there is no need to move the driving device. When disassembling the hanging bearing, there is no need to move the spiral shaft. The cover plate can be lubricated. The whole machine has high reproducibility, long life, strong adaptability, and is easy to install and maintain.
