We're professional horizontal cartridge dust collector manufacturers and suppliers in China, to buy or wholesale dust collector with horizontal cartridges from our factory. For quotation or if you have any questions, contact us now for customized horizontal cartridge dust collector and price.

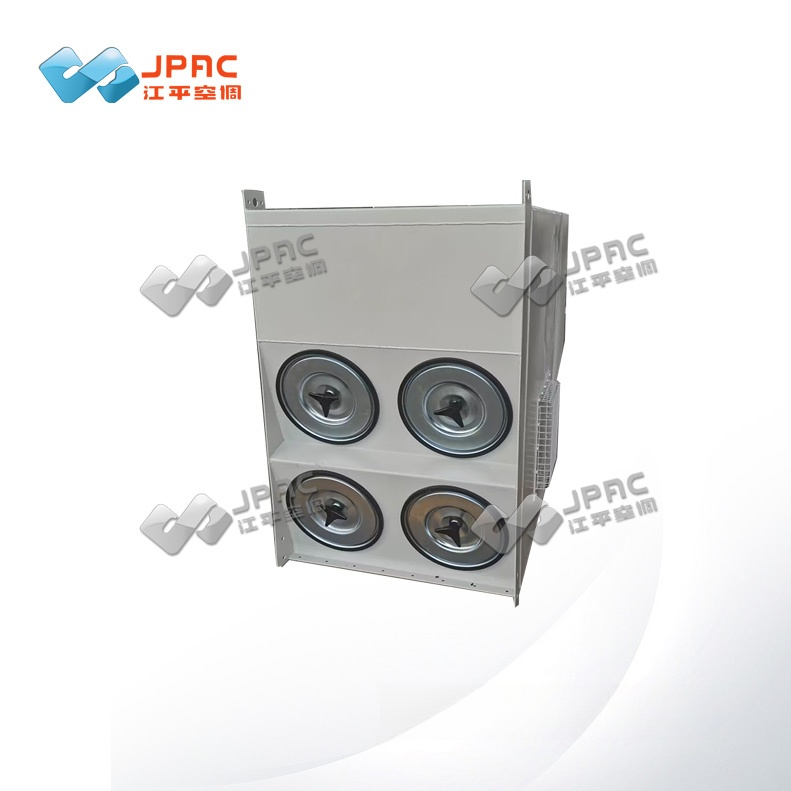

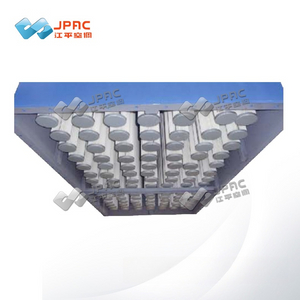

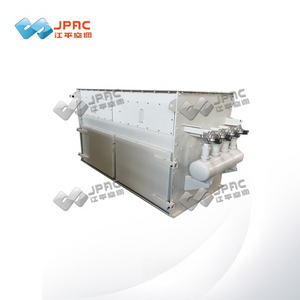

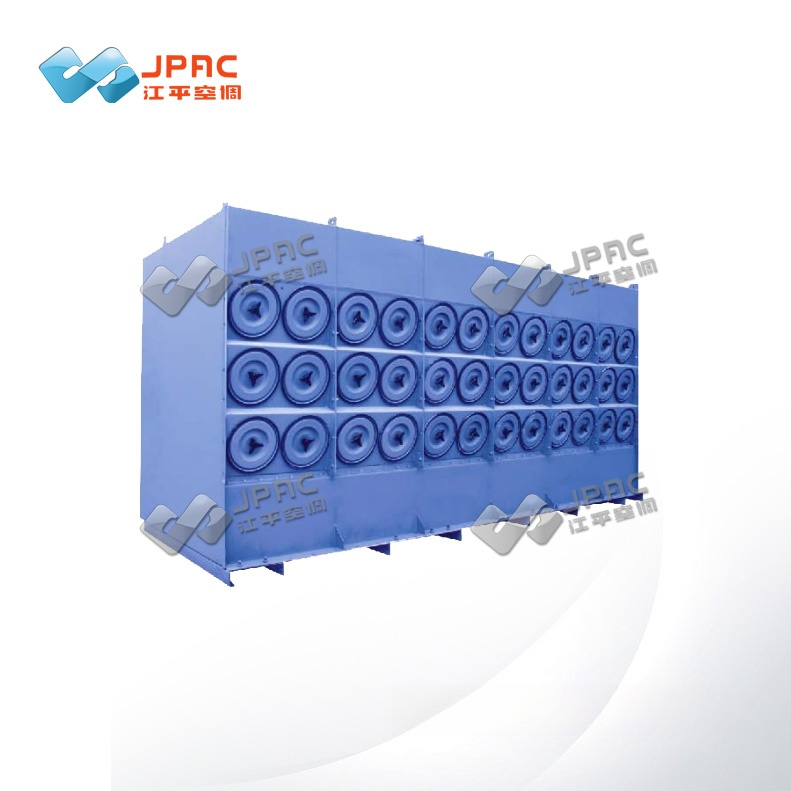

Appearance Reference
Product Features
It has advantages such as small size, high efficiency, low investment, and easy maintenance.
Application
Widely used in industries such as cement, steel, power generation, food processing, metallurgy, and chemical engineering, this technology is the best solution for overcoming the limitations of traditional dust collectors in collecting ultrafine dust, high filtration velocity, poor cleaning efficiency, easy wear and tear of filter bags, and high operating costs. Compared with various existing bag filters and electrostatic precipitators on the market, it features a large effective filtration area, low pressure drop, low emissions, compact size, and long service life.
Technical parameters of horizontal cartridge dust collector
Product Model | JPC-LTC2-2 | JPC-LTC2-4 | JPC-LTC2-8 | JPC-LTC4-6 | JPC-LTC4-8 | JPC-LTC4-10 | JPC-LTC4-12 | JPC-LTC4-14 | JPC-LTC4-16 | JPC-LTC4-18 | JPC-LTC4-20 |
Airflow (m³/h) | 2042 | 4085 | 8170 | 12254 | 16339 | 24768 | 29722 | 34675 | 39629 | 44582 | 49536 |
Filtering Area (m²) | 34.04 | 68.08 | 136.16 | 204.24 | 272.32 | 412.8 | 495.36 | 577.92 | 660.48 | 743.04 | 825.6 |
Number of Filter Cartridges | 4 | 8 | 16 | 24 | 32 | 40 | 48 | 56 | 64 | 72 | 80 |
Number of Pulse Valves | 2 | 4 | 8 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
Pulse Valve Specifications | 1.5′ | 1.5′ | 1.5′ | 1.5′ | 2.5′ | 2.5′ | 2.5′ | 2.5′ | 2.5′ | 2.5′ | 2.5′ |
Mobile Dust Collector (units) | 1 | 1 | 2 | 3 | 3 | 4 | 4 | 6 | 8 | 8 | 10 |
Filter Cartridge Specifications (mm) | φ320*660 | φ320*660 | φ320*660 | φ320*660 | φ320*660 | φ320*800 | φ320*800 | φ320*800 | φ320*800 | φ320*800 | φ320*800 |
Equipment Resistance (Pa) | ＜800 | ＜800 | ＜1000 | ＜1200 | ＜1200 | ＜1200 | ＜1200 | ＜1200 | ＜1200 | ＜1200 | ＜1200 |
Dust Removal Efficiency (%) | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 |
Inlet Dust Concentration (g/m³) | ＜30 | ＜30 | ＜30 | ＜30 | ＜30 | ＜30 | ＜30 | ＜30 | ＜30 | ＜30 | ＜30 |
Outlet Dust Concentration (mg/m³) | ＜10 | ＜10 | ＜10 | ＜10 | ＜10 | ＜10 | ＜10 | ＜10 | ＜10 | ＜10 | ＜10 |
Air Consumption (m³/min) | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.7 | 0.7 | 0.7 |
Fan | Model | B4-72No3.6A | B4-72No4A | B4-72No4A | B4-72No-4.5A | B4-72No5A | B4-72-6C | B4-72-10C | B4-72-10C | B4-72-12C | B4-72-12C | B4-72-12D |
Motor Power (kW) | Y160L-2(3) | Y132S1-2(5.5) | Y132S1-2(5.5) | Y132S2-2(7.5) | Y160M2-2(15) | Y160L-4（15） | Y180M-4(18.5) | Y180M-4(18.5) | Y200L1-6(18.5) | Y225M-6（30） | Y280S-6(45) |
Product Model | JPC-LTC2-2 | JPC-LTC2-4 | JPC-LTC2-8 | JPC-LTC4-6 | JPC-LTC4-8 | JPC-LTC4-10 | JPC-LTC4-12 | JPC-LTC4-14 | JPC-LTC4-16 | JPC-LTC4-18 | JPC-LTC4-20 |
Ash discharge valve | Ash discharge valve dimensions (mm) | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
Gear reducer model | BLD1-29-0.55 | BLD1-29-0.55 | BLD1-29-0.55 | BLD1-29-0.55 | BLD1-29-0.55 | BLD1-29-0.55 | BLD1-29-0.55 | BLD1-29-0.55 | BLD1-29-0.55 | BLD1-29-0.55 | BLD1-29-0.55 |
Rotational speed (r/min) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
Motor power (kW) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
Operating Temperature (°C) | <130 Instantaneous temperature 150℃ | <130 Instantaneous temperature 150℃ | <130 Instantaneous temperature 150℃ | <130 Instantaneous temperature 150℃ | <130 Instantaneous temperature 150℃ | <130 Instantaneous temperature 150℃ | <130 Instantaneous temperature 150℃ | <130 Instantaneous temperature 150℃ | <130 Instantaneous temperature 150℃ | <130 Instantaneous temperature 150℃ | <130 Instantaneous temperature 150℃ |
Screw Conveyor | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
Differential Pressure Transmitter | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
Temperature Transmitter | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
Fire Sprinkler System | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
Level Gauge | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
Explosion Venting Device | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
Audible and Visual Alarm | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
Dimensions (L*W*H) (mm) | 800*2200*3320 | 1000*2200*3320 | 2000*2200*3320 | 2000*2200*3790 | 3000*2200*3790 | 6060*2300*4080 | 7070*2300*4080 | 8080*2300*4080 | 6060*2300*4080 | 7070*2300*4080 | 8080*2300*4080 |
●Standard Configuration ○Optional Configurations
Horizontal cartridge dust collector manufacturer
JPAC focuses on providing high-quality horizontal cartridge dust collector and excellent service since 1982. We are a professional horizontal cartridge dust collector manufacturer and factory of 43000M2 which mainly produce central air conditioning units and dust collector products for around 44 years’ experience. JPAC provides you with horizontal cartridge dust collector wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
Where to buy horizontal cartridge dust collector?
If you have any questions about horizontal cartridge dust collector, dust collector with horizontal cartridges, cartridge dust collector, cartridge dust collectors, cartridge type dust collector, please don't hesitate to contact us at logos@jsjpxhj.com. We will provide detailed information and technical support about central air conditioning units and dust collectors’ features, specifications, solutions and customization options... Welcome you to visit our factory!
