We're professional constant temperature and humidity air conditioning unit manufacturers and suppliers in China, to buy or wholesale rooftop air conditioning unit from our factory. For quotation or if you have any questions, contact us now for customized water cooled rooftop air conditioning unit and price.

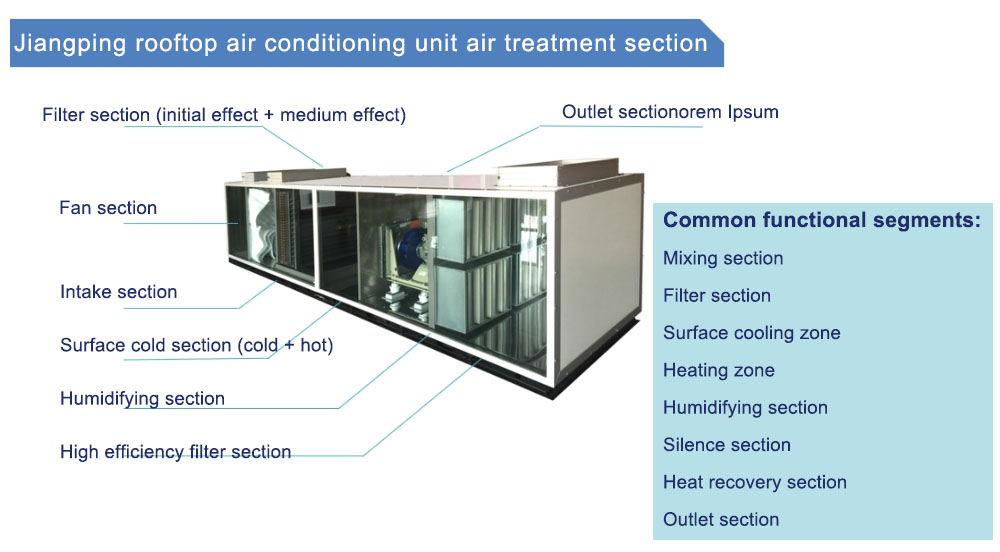

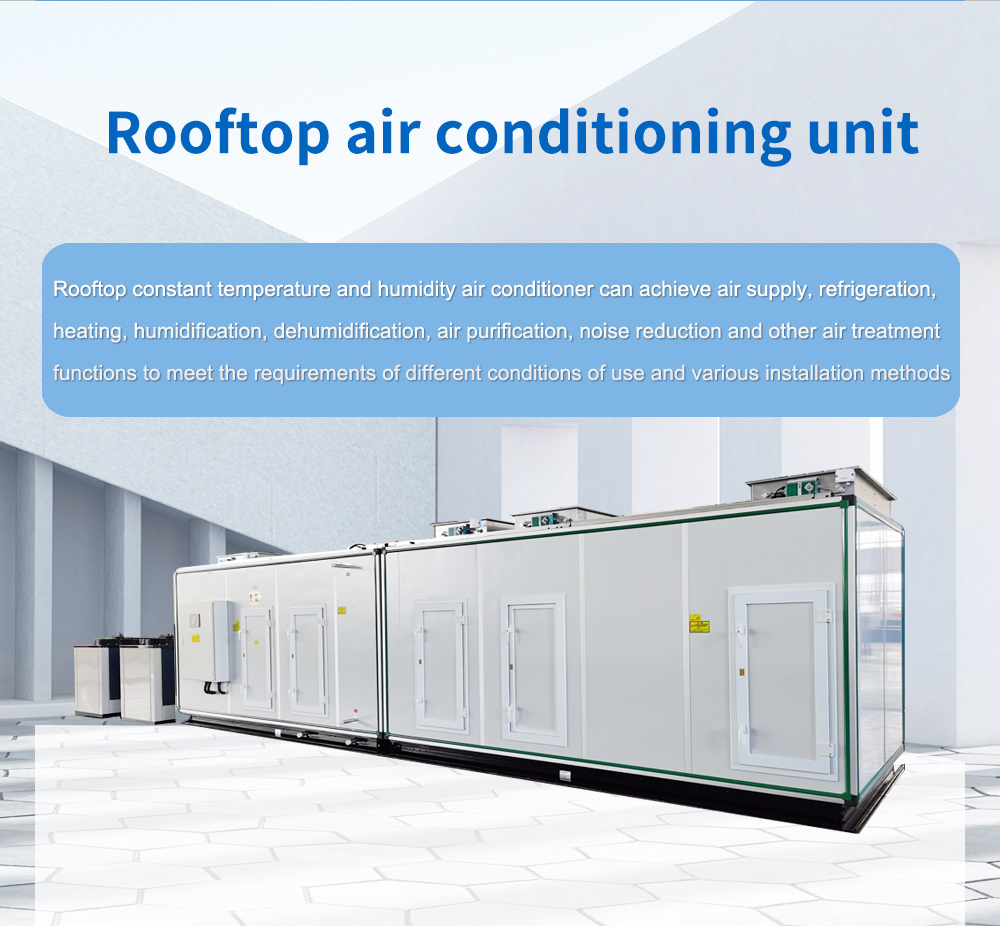

Rooftop constant temperature and humidity air conditioners can realize various air treatment functions such as air supply, cooling, heating, humidification, dehumidification, air purification, and noise elimination. In particular, combined air handlers can meet different usage conditions and various installation methods. requirements, at the same time our company can also provide users with non-standard production.

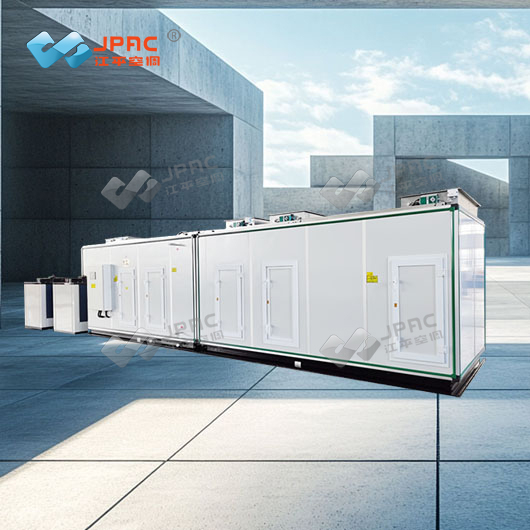

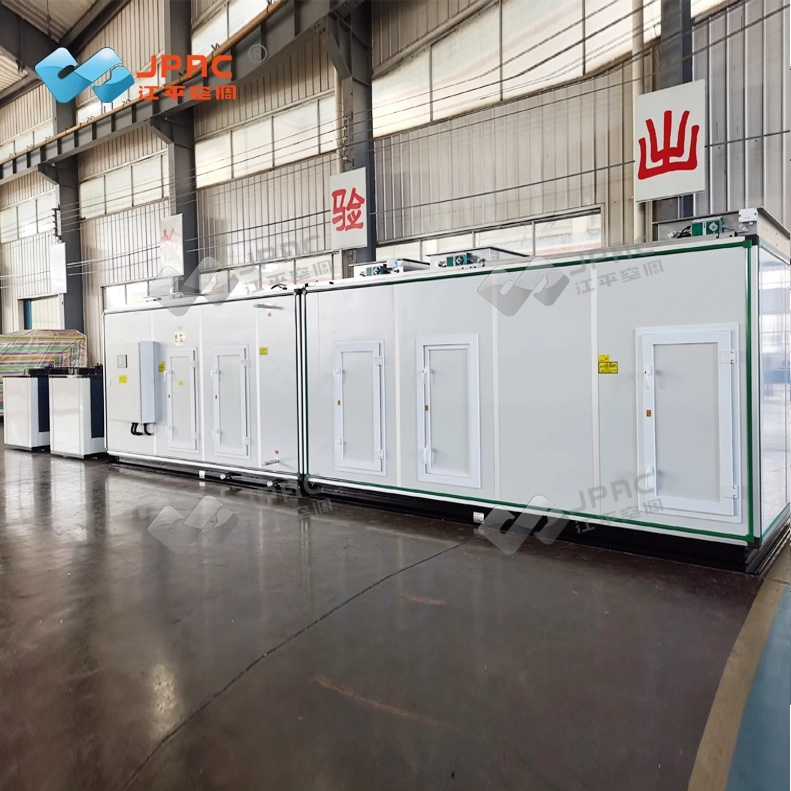

The roof-mounted constant temperature and humidity air conditioner has the advantages of beautiful and solid appearance, small space occupation, good thermal insulation effect, low air leakage rate, easy installation, reliable performance and long service life. It is especially suitable for places with small air conditioning machine rooms in power systems.
Compressor power HP | model | Refrigeration capacity | Heating capacity | Air volume | External residual pressure (static pressure) | Overall dimensions | weight |
kW | kW | m³/h | Pa | mm | kg | ||
10 | JWK-28HFM | 28.2 | 12 | 5000 | 150 | 2000×1330×1285 | 400 410 420 430 |
JWK-30RFM JWK-30LFM JWK-30LFDM | 30.3 | 32.7 ————— 12 | |||||
24 | JWK-60HFM | 60.1 | 27.0 | 11000 | 260 | 2825×1450×1710 | 1180 1190 1120 1140 |
JWK-63RFM | 63.0 | 69.5 ———— 27.0 | |||||
JWK-63LFM | |||||||
JWK-63LFDM | |||||||
30 | JWK-80HFM | 80.0 | 36.0 | 14000 | 400 | 3800×1920×1710 | 1600 1610 15401570 |
JWK-84RFM | 84.6 | 88.7 ————— 36.0 | |||||
JWK-84LFM | |||||||
JWK-84LFDM | |||||||
40 | JWK-105HFM | 104.8 | 48.0 | 18000 | 450 | 3800×1920×2020 | 2110 2120 2050 |
JWK-113RFM | 112.7 | 114.6 ————— 48.0 76—152(S) 110-220(Q) | |||||
JWK-113LFM | |||||||
JWK-113LFDM | 2080 2080 | ||||||
JWK-113LFQ(S)M | |||||||
60 | JWK-142HFM | 141.9 | 64 | 25000 | 500 | 7070×2230×2330 | 4330 |
JWK-153RFM | 152.6 | 155.2 | 4370 | ||||
JWK-153LFM | — | 4240 | |||||
JWK-153LFDM | 81 | 4300 | |||||
JWK-153LFQ(S)M | 118-236(S) | 4300 | |||||
169-338(Q) | |||||||
80 | JWK-192HFM | 192.4 | 81 | 32000 | 600 | 7790×2230×2330 | 5230 |
JWK-207RFM | 206.8 | 210.3 | 5280 | ||||
JWK-207LFM | — | 5120 | |||||
JWK-207LFDM | 81 | 5200 | |||||
JWK-207LFQ(S)M | 118-236(S) | 5200 | |||||
169-338(Q) | |||||||
100 | JWK-239HFM | 238.8 | 102 | 40000 | 600 | 8480×2230×2330 | 5830 |
JWK-257RFM | 256.8 | 261 | 5880 | ||||
JWK-257LFM | — | 5720 | |||||
JWK-257LFDM | 102 | 5800 | |||||
JWK-257LFQ(S)M | 157-314(S) | 5800 | |||||
222-444(Q) | |||||||
120 | JWK-282HFM | 281.8 | 126 | 45000 | 650 | 8880×2480×2680 | 6400 |
JWK-302RFM | 302.2 | 308.4 | 6450 | ||||
JWK-302LFM | — | 6300 | |||||
JWK-302LFDM | 126 | 6370 | |||||
JWK-302LFQ(S)M | 179-538(S) | 6370 | |||||
253-506(Q) | |||||||
160 | JWK-385HFM | 385 | 144 | 60000 | 650 | 11240×2480×2680 | 8450 |
JWK-390RFM | 390.4 | 398.7 | 8500 | ||||
JWK-390LFM | — | 8400 | |||||
JWK-390LFDM | 144 | 8900 | |||||
JWK-390LFQ(S)M | 200-400(S) | 8900 |

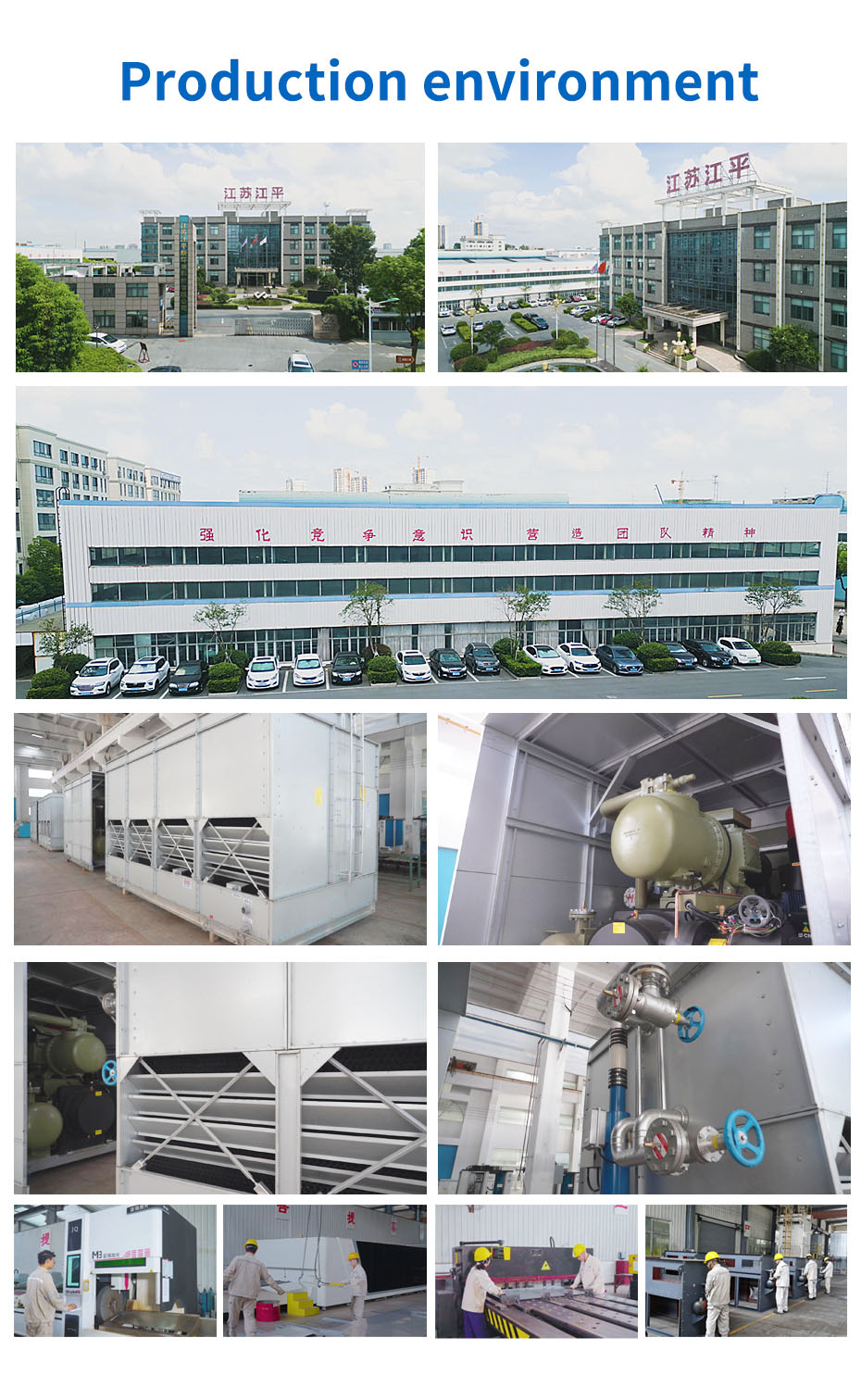

JPAC focuses on providing high-quality constant temperature and humidity air conditioning unit and excellent service since 1982. We are a professional constant temperature and humidity air conditioning unit manufacturer and factory of 43000M2 which mainly produce central air conditioning units and dust collector products for around 44 years’ experience. JPAC provides you with constant temperature and humidity air conditioning unit wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about constant temperature and humidity air conditioning unit, rooftop air conditioning unit, water cooled rooftop air conditioning unit, constant temperature and humidity rooftop air conditioning unit, please don't hesitate to contact us at any time. We will provide detailed information and technical support about central air conditioning units and dust collectors’ features, specifications, solutions and customization options... Welcome you to visit our factory!
