Water Film Dust Collector

Water film dust collector is also called cyclone water film dust collector or wet scrubber dust collector.

● Dust removal efficiency can reach 90-95%;
● Compact structure, small footprint;
● Water film dust removal technology is used, with low water consumption;
● Applicable to dust control in various industrial fields.

Availability:

Quantity:



Inquire Add to Basket

Product Description

We're professional water film dust collector manufacturers and suppliers in China, to buy or wholesale cyclone water film dust collector from our factory. For quotation or if you have any questions, contact us now for customized wet scrubber dust collector and price.

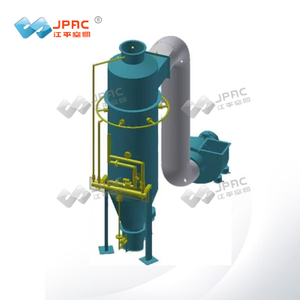

Appearance Reference

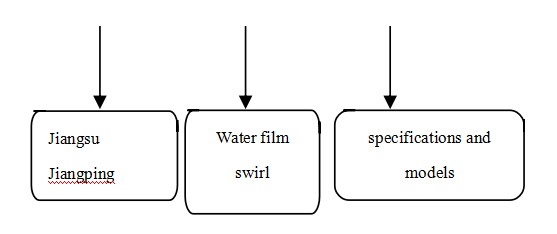

Symbolic Standard

Advantage

Simple to maintain, low initial investment cost and low water consumption.

Technical parameters

Product Model		JPC /SX-100	JPC /SX-120	JPC /SX-130	JPC /SX-140
Design air Volume (m³/h)		4000-5000	5000-7000	7000~9000	10000~15000
Equipment Resistance (Pa)		<1200	<1200	<1200	<1200
Nozzle	Water Pressure (Pa)	9.8×10⁴~14.7×10⁴	9.8×10⁴-14.7×10⁴	9.8×10⁴~14.7×10⁴	9.8×10⁴~14.7×10⁴
Nozzle	Water Flow (myh)	0.6	0.8-1.0	1.5-2.0	2.0-2.7
Cyclone	Water Pressure (Pa)	1.96×10⁴	1.96×10⁴	1.96×10⁴	1.96×10⁴
Cyclone	Water Flow (m³/h)	0.4	0.64-0.8	1.2-1.6	1.76-2.16
Centrifugal Fan	Model	B4-72-No4A	4-72No4.5A	4-72No5A	34-72No8C
	Air Volume (m³/h)	4020-7419	5720-10560	7280-15455	13824-25920
	Air Pressure (Pa)	2040-1320	2580-1673	3187-2019	2478-2390
	Rotation Speed (r/min)	2900	2900	2900	1600
	Motor Model	Y13251-2	Y13252-2	Y160M2-2	Y180M-2
	Motor Power (KW)	5.5	7.5	15	22
External Dimensions	H Total Height (mm)	4400	4400	4600	4900
	H1 Inlet Height (mm)	2780	2780	2050	2850
	A Upper Section Diameter (mm)	1000	1200	1300	1400
	B Lower Section Diameter (mm)	800	950	1000	1104
	h1 Water Tank Height (mm)	500	575	610	675
	φ1 Inlet Diameter (mm)	275	300	355	400
	φ2 Outlet Diameter (mm)	300	300	355	430
	φ3 Water Tank Diameter [mm]	500	600	650	700
Electric Contact Pressure Gauge	●	●	●	●	●
Pressure Transmitter	○	○	○	○	○

Application

The JPCSX multi-stage cyclone water film dust collector is suitable for dust removal at belt transfer points, raw coal silos, coal drop points of impeller coal feeders, coal plows of plows, and the top of coal drop ports in coal-fired power plants. It is a special equipment for explosive dust.

Water film dust collector manufacturer

JPAC focuses on providing high-quality water film dust collector and excellent service since 1982. We are a professional water film dust collector manufacturer and factory of 43000M² which mainly produce central air conditioning units and dust collectorproducts for around 44 years’ experience. JPAC provides you with water film dust collector wholesale, customization, design, packaging, industry solutions and OEM & ODM service.

Where to buy water film dust collector?

If you have any questions about water film dust collector, cyclone water film dust collector, wet scrubber dust collector, please don't hesitate to contact us at logos@jsjpxhj.com. We will provide detailed information and technical support about central air conditioning units and dust collectors’ features, specifications, solutions and customization options... Welcome you to visit our factory!

Water film dust collector Cyclone water film dust collector wet scrubber dust collector
