Wet Scrubber Dust Collector

Water Film Dust Collectors include Cyclone & Venturi Water Film Systems, featured with High-Efficiency Dust Removal.

● Design Airflow(m³/h): 4000~38000
● Equipment Resistance(Pa): <1200
● Safe and Certified for Explosive Dust Environments.
● High Filtration Efficiency with Low Emission Levels.
● Modular, Welding-Free Design for Easy Installation.
● Robust Construction Ensures Long-Term Durability.
● Versatile Application Across Major Industrial Sectors.
● Low Operational Cost and Simplified Maintenance Requirements.

Send us your industrial dust removal requirements. Our Logos team will swiftly customize a professional dust collector solution for you that features high quality and a low price!

Availability:

Quantity:



Inquire Add to Basket

We're professional water film dust collector manufacturers and suppliers in China, to buy or wholesale cyclone water film dust collector from our factory. For quotation or if you have any questions, contact us now for customized wet scrubber dust collector and price.

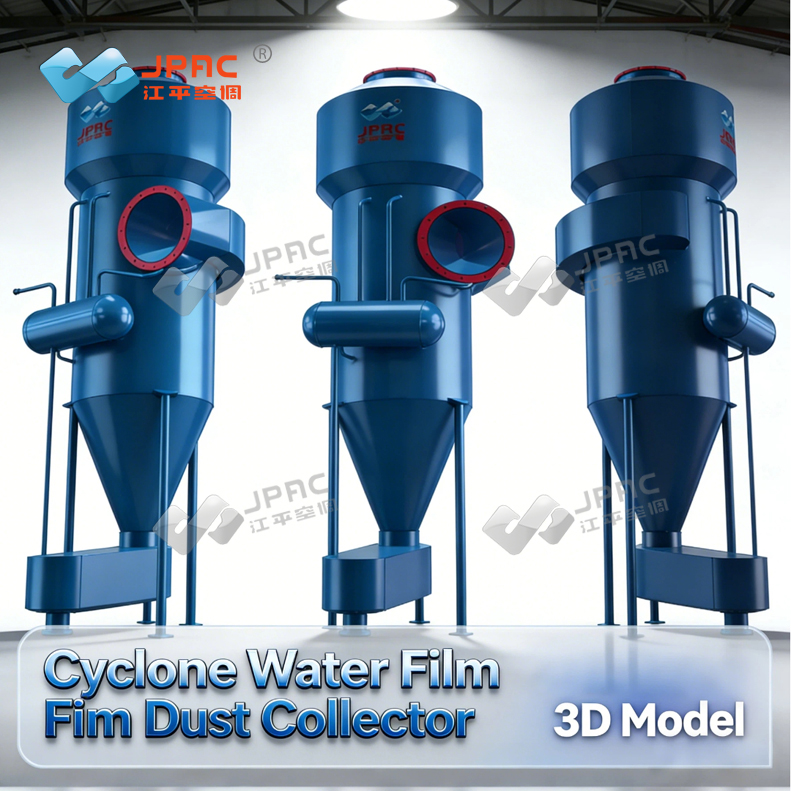

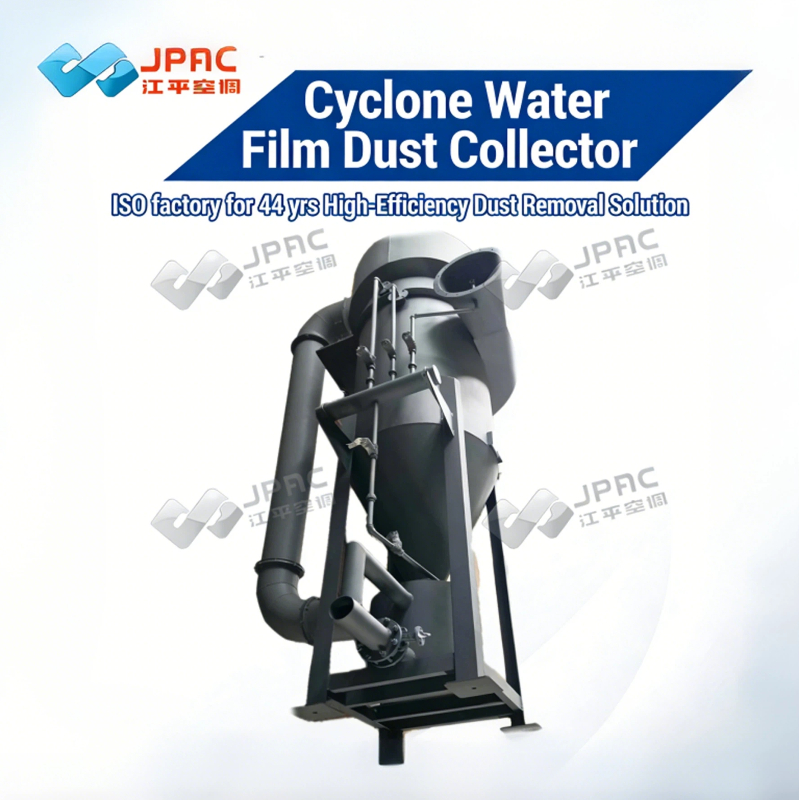

Appearance Reference

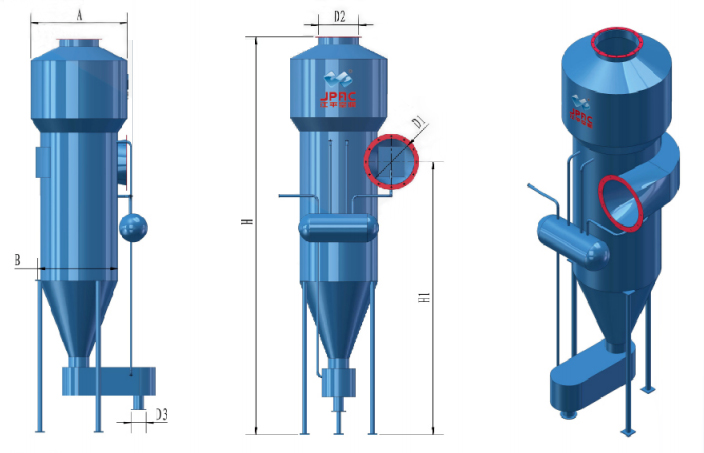

Symbolic standard of water film dust collector

Advantage of water film dust collector

Simple to maintain, low initial investment cost and low water consumption.

Technical parameters of water film dust collector

Product Model		JPC /SX-100	JPC /SX-120	JPC /SX-130	JPC /SX-140
Design air Volume (m³/h)		4000-5000	5000-7000	7000~9000	10000~15000
Equipment Resistance (Pa)		<1200	<1200	<1200	<1200
Nozzle	Water Pressure (Pa)	9.8×10⁴~14.7×10⁴	9.8×10⁴-14.7×10⁴	9.8×10⁴~14.7×10⁴	9.8×10⁴~14.7×10⁴
Nozzle	Water Flow (myh)	0.6	0.8-1.0	1.5-2.0	2.0-2.7
Cyclone	Water Pressure (Pa)	1.96×10⁴	1.96×10⁴	1.96×10⁴	1.96×10⁴
Cyclone	Water Flow (m³/h)	0.4	0.64-0.8	1.2-1.6	1.76-2.16
Centrifugal Fan	Model	B4-72-No4A	4-72No4.5A	4-72No5A	34-72No8C
	Air Volume (m³/h)	4020-7419	5720-10560	7280-15455	13824-25920
	Air Pressure (Pa)	2040-1320	2580-1673	3187-2019	2478-2390
	Rotation Speed (r/min)	2900	2900	2900	1600
	Motor Model	Y13251-2	Y13252-2	Y160M2-2	Y180M-2
	Motor Power (KW)	5.5	7.5	15	22
External Dimensions	H Total Height (mm)	4400	4400	4600	4900
	H1 Inlet Height (mm)	2780	2780	2050	2850
	A Upper Section Diameter (mm)	1000	1200	1300	1400
	B Lower Section Diameter (mm)	800	950	1000	1104
	h1 Water Tank Height (mm)	500	575	610	675
	φ1 Inlet Diameter (mm)	275	300	355	400
	φ2 Outlet Diameter (mm)	300	300	355	430
	φ3 Water Tank Diameter [mm]	500	600	650	700
Electric Contact Pressure Gauge	●	●	●	●	●
Pressure Transmitter	○	○	○	○	○

Application of water film dust collector

The JPCSX multi-stage cyclone water film dust collector is suitable for dust removal at belt transfer points, raw coal silos, coal drop points of impeller coal feeders, coal plows of plows, and the top of coal drop ports in coal-fired power plants. It is a special equipment for explosive dust.

Water film dust collector manufacturer

JPAC focuses on providing high-quality water film dust collector and excellent service since 1982. We are a professional water film dust collector manufacturer and factory of 43000M² which mainly produce central air conditioning units and dust collectorproducts for around 44 years’ experience. JPAC provides you with water film dust collector wholesale, customization, design, packaging, industry solutions and OEM & ODM service.

Where to buy water film dust collector?

If you have any questions about water film dust collector, cyclone water film dust collector, wet scrubber dust collector, please don't hesitate to contact us at logos@jsjpxhj.com. We will provide detailed information and technical support about central air conditioning units and dust collectors’ features, specifications, solutions and customization options... Welcome you to visit our factory!

We're professional wet scrubber dust collector manufacturers and suppliers in China, to buy or wholesale venturi wet scrubber from our factory. For quotation or if you have any questions, contact us now for customized scrubber dust collector and price.

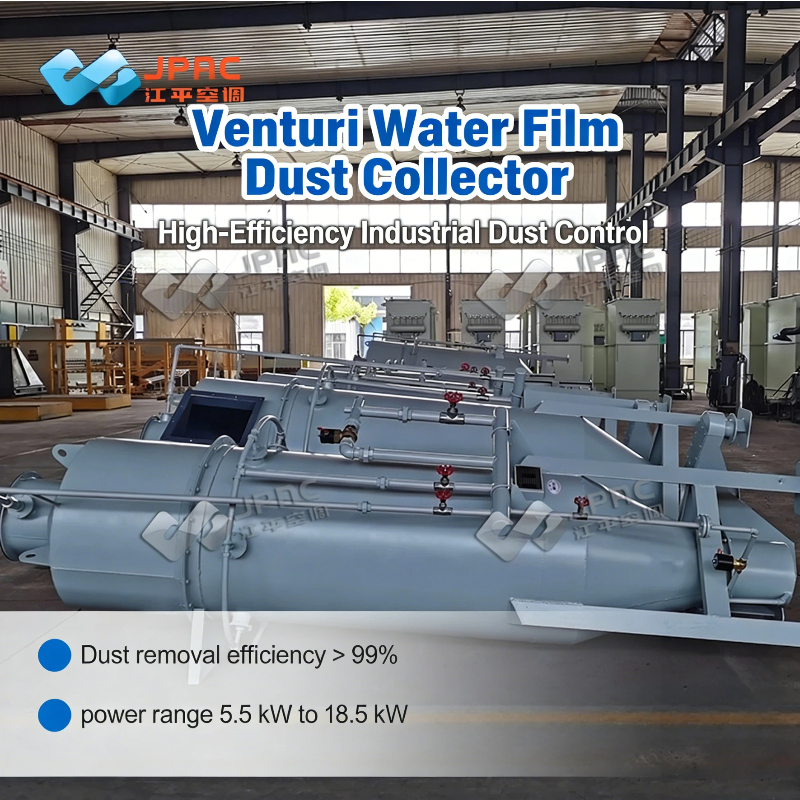

Appearance Reference

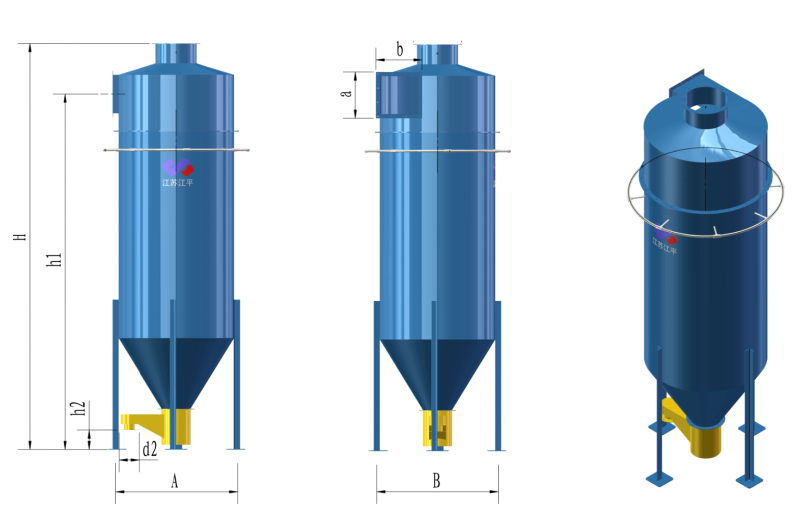

Symbolic Standard

Advantage

Simple to maintain, low initial investment cost and low water consumption.

Technical Parameters

Product Model		JPC/WS-8	JPC/WS-10	JPC/WS-12	JPC/WS-14	JPC/WS-16
Design Airflow (m³/h)		4000~7500	8000~10000	15000~20000	22000~27000	32000~38000
Equipment Resistance (Pa)		＜1200	＜1200	＜1200	＜1200	＜1200
Nozzle	Water pressure (Pa)	9.8×10⁴~14.7×10⁴
Nozzle	Water flow rate (m³/h)	0.6	0.8~1.0	1.5~2.0	2.0~2.7	3.2~3.8
cyclone separator	Water pressure (Pa)	1.96×10⁴
cyclone separator	Water flow rate (m³/h)	0.4	0.64~0.8	1.2~1.6	1.76~2.16	2.56~3.0
Water seal	Water pressure (Pa)	9.8×10⁴
Water seal	Water flow rate (m³/h)	0.2	0.4	0.4	0.4	0.4
Centrifugal fan	Model	4-79-4A	4-79-4.5A	4-79-7C	4-79-7C	4-79-8C
	Air flow rate (m³/h)	4000~7500	6640~12920	15000~21600	22000~27000	32000~38000
	Air pressure (Pa)	2014~1320	2696~1618	2050~1750	2000~1700	2050~1850
	Rotational speed (r/min)	2900	2900	1600	1800	1600
	Motor model	Y132S1-2	Y160M1-2	Y180M-4	Y180L-4	Y200L-4
	Motor power (kW)	5.5	11	18.5	22	30
	Fan weight (kg)	62	117	420	420	510
	Motor weight (kg)	56	102	162	180	234
Electrical contact pressure gauge	●	●	●	●	●	●
Pressure transmitter	○	○	○	○	○	○
Model/Dimensions (H*D) mm		3400*800	4200*1000	5300*1200	6200*1400	7200*1600
Dust collector weight Kg		1200	1400	2000	2400	3000
Support frame weight Kg		23	35	150	165	200
Total weight Kg		1341	1654	2852	3165	3944

Application

Dust removal at the belt transfer points of coal-fired power plants, raw coal bins, coal drop points of impeller coal feeders, coal plows of coal plows, the top of coal drop ports, and material drop points of material conveying systems in other industries. It is a special equipment for explosive dust.

Wet scrubber dust collector manufacturer

JPAC focuses on providing high-quality venturi wet dust collector and excellent service since 1982. We are a professional venturi wet dust collector manufacturer and factory of 43000M² which mainly produce central air conditioning units and dust collector products for around 44 years’ experience. JPAC provides you with venturi wet dust collector wholesale, customization, design, packaging, industry solutions and OEM & ODM service.

Where to buy wet scrubber dust collector?

If you have any questions about wet scrubber dust collector, venturi wet scrubber, scrubber dust collector, venturi wet scrubber system, wet scrubber venturi, please don't hesitate to contact us at any time. We will provide detailed information and technical support about central air conditioning units and dust collectors’ features, specifications, solutions and customization options... Welcome you to visit our factory!
