High-Pressure Mist Cannon

High-pressure mist cannon is also called high-pressure fog jets.

● Efficient Dust Suppression & Humidification;

● Flexible Operation & Wide Application;

● Water-Saving & Energy-Efficient Design;

● Stable Performance & Durable Structure;

● Environmentally Friendly & Secondary Pollution-Free;

Availability:

Quantity:



Inquire Add to Basket

Product Description

We're professional high-pressure mist cannon manufacturers and suppliers in China, to buy or wholesale high-pressure fog jets from our factory. For quotation or if you have any questions, contact us now for customized and price.

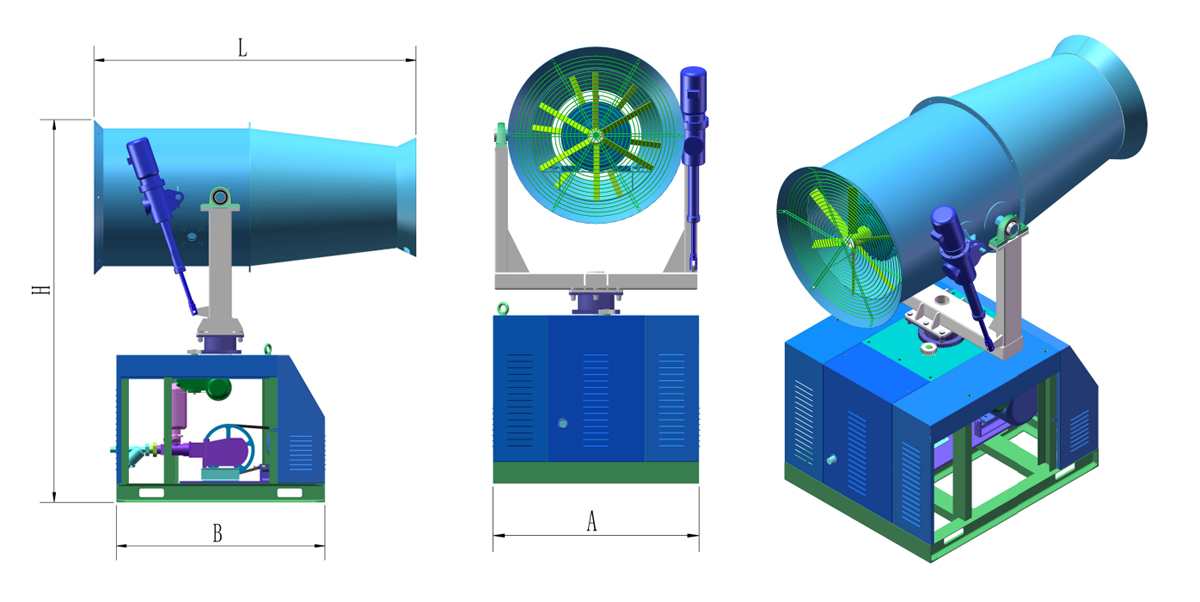

Symbol standard

Features

It has high instantaneous dust suppression efficiency, long radiation range, and small footprint.

Application

It is suitable for dust control in open-air material storage yards, coal logistics parks, open-pit mines, open-air blasting dust, enclosed unloading areas, truck unloading ports, dump truck unloading dust, large loader working dust, coastal port loading and unloading, transfer of coal, ore, bulk powder handling and other dust materials.

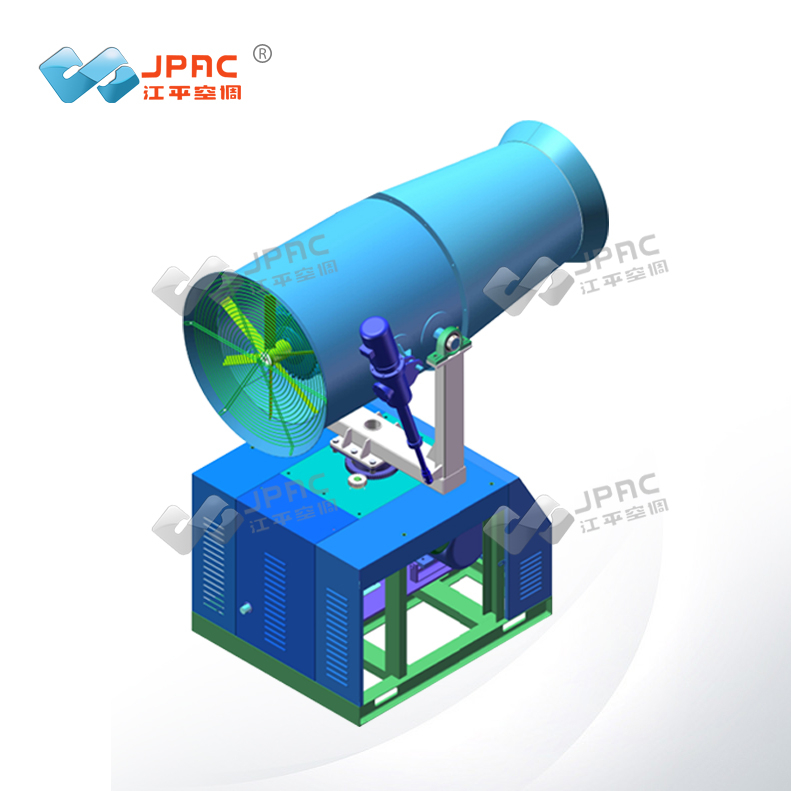

Appearance Reference

Technical Parameters

Product Model	JPCWP-25	JPCWP-30	JPCWP-40	JPCWP-50	JPCWP-60	JPCWP-80	JPCWP-90	JPCWP-100
Range (m)	25~30	35~40	45~50	55~60	65~70	85~90	95~100	105~110
Rotation Angle (Electric)	≤340°
Pitch Angle (Hydraulic)	-5~35°
Power Supply	380V（3L+N）
Total Power (kW)	4	4.8	11.7	11.7	27.9	49.7	61.7	75.2
Water Pump Power (kW)	1.5	1.5	3	5.5	7.5	11	15	18.5
Water Pump Pressure (MPa)	1.0~3.5	1.0~3.5	1.0~4.0	0.5~1.2	0.5~1.4	1.0~1.8	1.0~1.6	1.0~3.5
Water Consumption (m³/h)	0.5~0.9	0.5~0.9	0.5~1.8	3~5	3~6	3~6	5~10	9~14
Spray Ring Type	Standard single ring					Standard double ring
Number of Nozzles	12	12	24	30	36	70	100	100
Central Nozzle	Optional
Water Mist Particle Diameter (μm)	20~150
Mounting Method	Platform / Vehicle-mounted / Elevated platform
Protection Class	IP55
Noise Level (dB)	At a distance of 20 meters, the value is≤60	At a distance of 20 meters, the value is≤62	At a distance of 20 meters, the value is≤67	At a distance of 20 meters, the value is≤70	At a distance of 20 meters, the value is≤73	At a distance of 20 meters, the value is≤70	At a distance of 20 meters, the value is≤75	At a distance of 20 meters, the value is≤80
Dimensions (mm)	1200×700×1700	1200×700×1700	1530×940×1900	1725×940×2020	1930×1200×2122	2500×1400×2580	2500×1400 ×2580	2856×1600×2700
(L×W×H)	1200×700×1700	1200×700×1700	1530×940×1900	1725×940×2020	1930×1200×2122	2500×1400×2580	2500×1400 ×2580	2856×1600×2700
Weight (kg)	180	210	450	640	850	1470	1510	2260
Local Text Screen Control	●	●	●	●	●	●	●	●
Wireless Remote Control	○	○	○	○	○	○	○	○
Cloud Platform Control	○	○	○	○	○	○	○	○
Centralized Control	○	○	○	○	○	○	○	○
Intelligent Visual Tracking	○	○	○	○	○	○	○	○
Explosion-proof Device	○	○	○	○	○	○	○	○

●Standard Configuration ○Select Configuration
