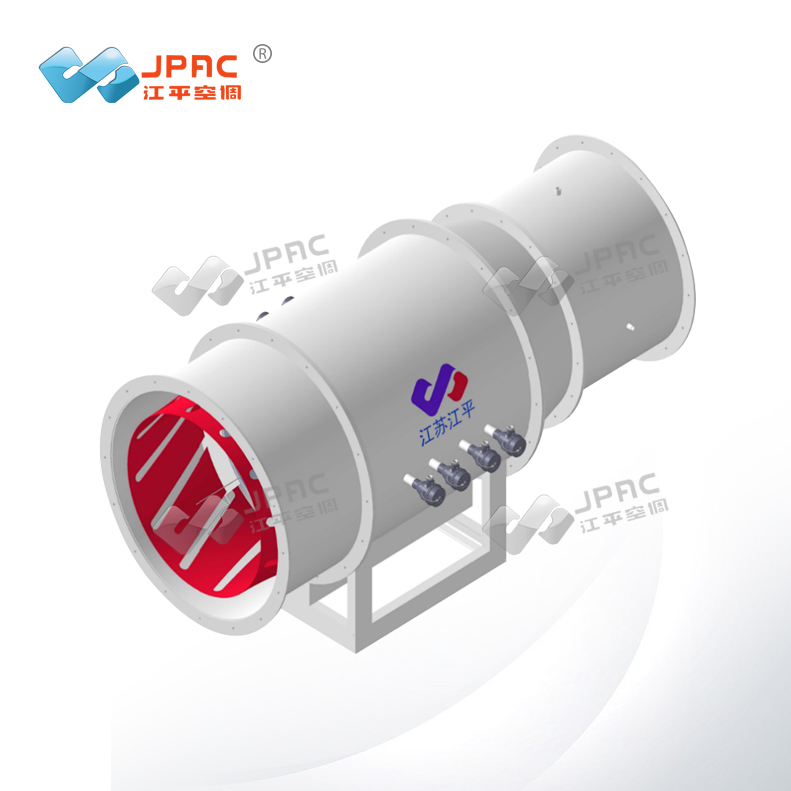

Mining Wet Dust Collector And Gas Scrubber

Mining wet dust collector and gas scrubber is also called high-pressure fog jets.

● High-Efficiency Dual Purification for Dust & Harmful Gases;

● Strong Adaptability to Harsh Mining Environments;

● Low Energy Consumption & Water Recycling Design;

● Safe & Intelligent Operation with Low Maintenance;

● Compliance with Strict Mining Environmental & Safety Standards;

Availability:

Quantity:



Inquire Add to Basket

Product Description

We're professional mining wet dust collector and gas scrubber manufacturers and suppliers in China, to buy or wholesale high-pressure fog jets from our factory. For quotation or if you have any questions, contact us now for customized and price.

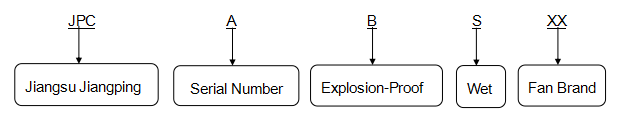

Symbol standard

Features

This equipment has dual functions of ventilation and dust removal, with high dust removal efficiency and low energy consumption. It is installed horizontally in the same direction as the pipeline, requiring no floor space.

Application

It is mainly suitable for on-site purification of dust-laden air at dust-generating work sites in coal mines where dust is concentrated. It can partially eliminate harmful components in the gas, effectively ensuring that the working environment meets industrial hygiene standards and protecting the health of miners and mine safety. It can also be used for dust removal in lignite and ore aggregate conveying lines.

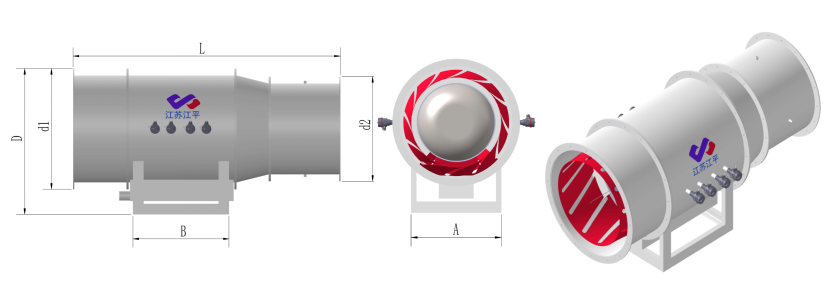

Appearance Reference

Technical Parameters

Product Model	JPCAB~S~5.0#	JPCAB~S~5.5#	JPCAB~S~6.0#	JPCAB~S~6.5#	JPCAB~S~7.0#	JPCAB~S~7.5#	JPCAB~S~8.0#	JPCAB~S~8.5#	JPCAB~S~9.0#
Airflow Rate (m³/h)	8000	10000	12000	15000	18000	22000	26000	32000	40000
Total Dust Removal Efficiency (%)	≥90	≥90	≥90	≥90	≥90	≥90	≥90	≥90	≥90
Respirable Dust Removal Efficiency (%)	≥65	≥65	≥65	≥65	≥65	≥65	≥65	≥65	≥65
Gas-Liquid Ratio (L/m³)	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2
Air Leakage Rate (%)	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5
Rated Operating Resistance (Pa)	500	500	500	750	1000	1100	700	700	900
Noise [dB(A)]	≤85	≤85	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Static Pressure Efficiency (%)	≥55	≥55	≥55	≥55	≥55	≥55	≥55	≥55	≥55
Water Supply Pressure (MPa)	≥0.3	≥0.3	≥0.3	≥0.3	≥0.3	≥0.3	≥0.3	≥0.3	≥0.3
Motor Model	YBF3~132M~4	YBF3~160M~4	YBF3~160L~4	YBF3~160L~4	YBF3~180M~4	YBF3~180L~4	YBF3~225S~4	YBF3~225M~4	YBF3~250M~4
Rated Power (kW)	7.5	11	15	15	18.5	22	37	45	55
Rated Voltage (V) Rated Current (A)	380/660	380/660	380/660	380/660	380/660	380/660	380/660	380/660	380/660
Rated Voltage (V) Rated Current (A)	660/1140	660/1140	660/1140	660/1140	660/1140	660/1140	660/1140	660/1140	660/1140
Rated Speed (r/min) Explosion-proof Type	14.9/8.6	21.6/12.5	28.8/16.6	28.8/16.6	35.5/20.5	41/23.6	67.9/39.2	82.1/47.4	99.8/57.6
Rated Speed (r/min) Explosion-proof Type	8.6/4.9	12.5/7.2	16.6/9.6	16.6/9.6	20.5/11.8	23.6/13.7	39.2/22.63	47.4/27.4	57.6/33.3
Operating Mode	1440	1440	1460	1470	1470	1470	1480	1480	1480
Product Model	○	○	○	○	○	○	○	○	○
Airflow Rate (m³/h)	continuous	continuous	continuous	continuous	continuous	continuous	continuous	continuous	continuous

●Standard Configuration ○Select Configuration

Mining Wet Dust Collector and Gas Scrubber manufacturer

JPAC focuses on providing high-quality bag house dust collector and excellent service since 1982. We are a professional bag house dust collector manufacturer and factory of 43000M² which mainly produce central air conditioning units and dust collector products for around 44 years’ experience. JPAC provides you with bag house dust collector wholesale, customization, design, packaging, industry solutions and OEM & ODM service.

Where to buy bag house dust collector?

If you have any questions about mining wet dust collector and gas scrubber, high-pressure fog jets, please don't hesitate to contact us at logos@jsjpxhj.com. We will provide detailed information and technical support about central air conditioning units and dust collectors’ features, specifications, solutions and customization options... Welcome you to visit our factory!
