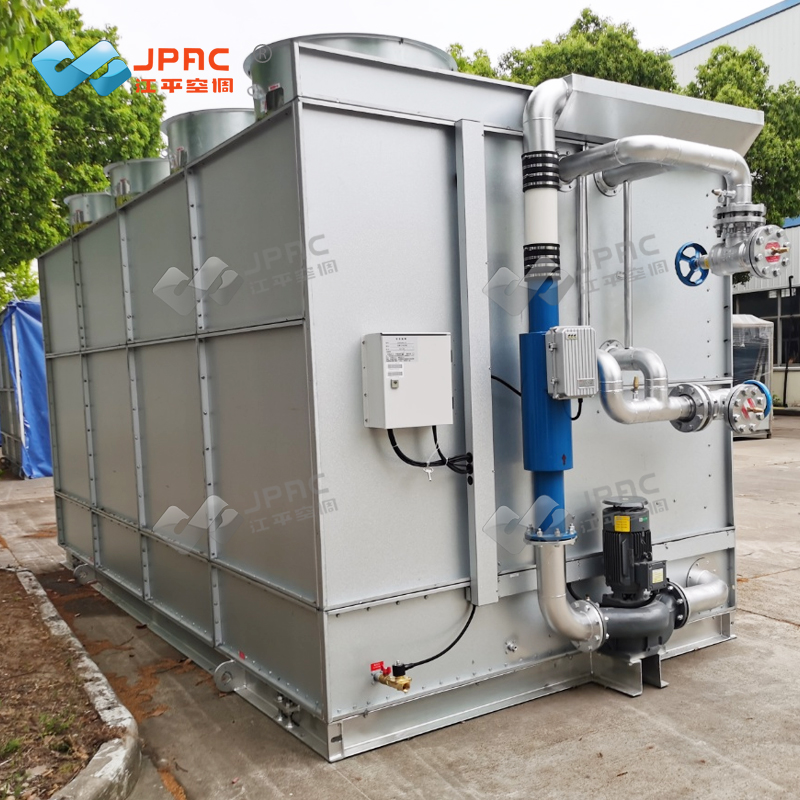

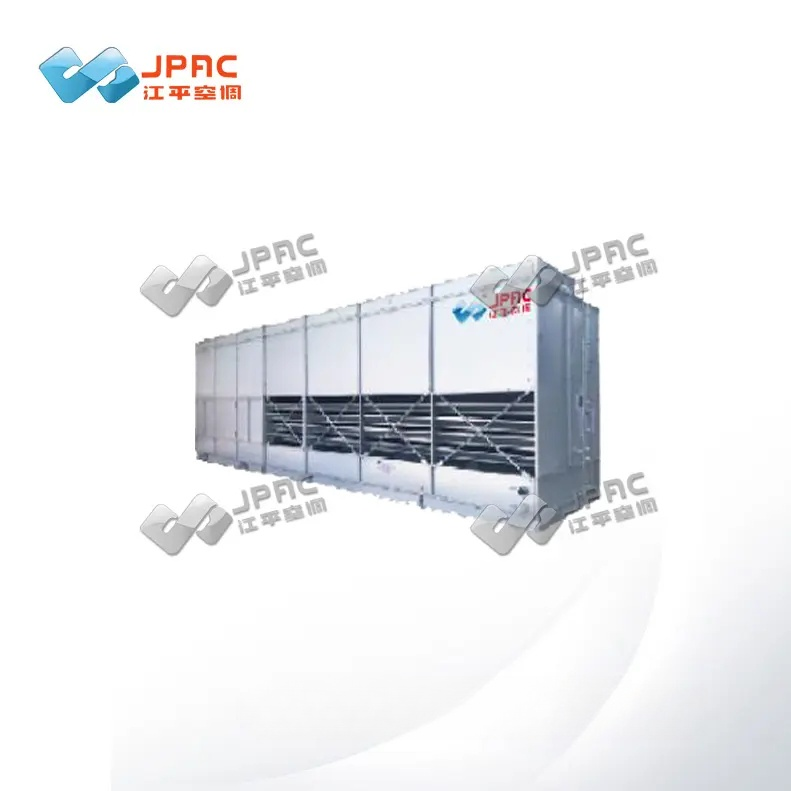

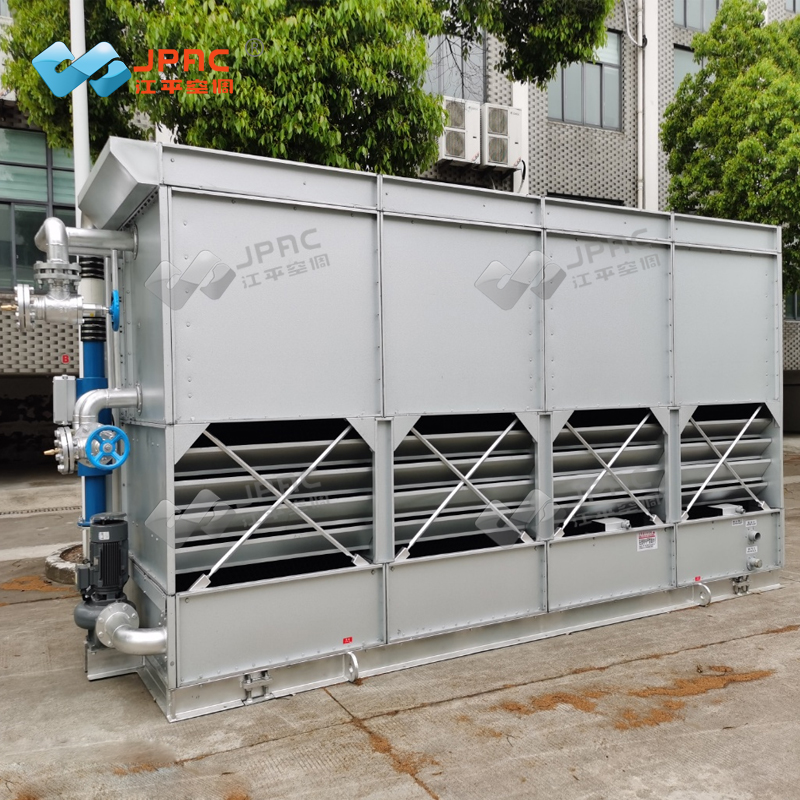

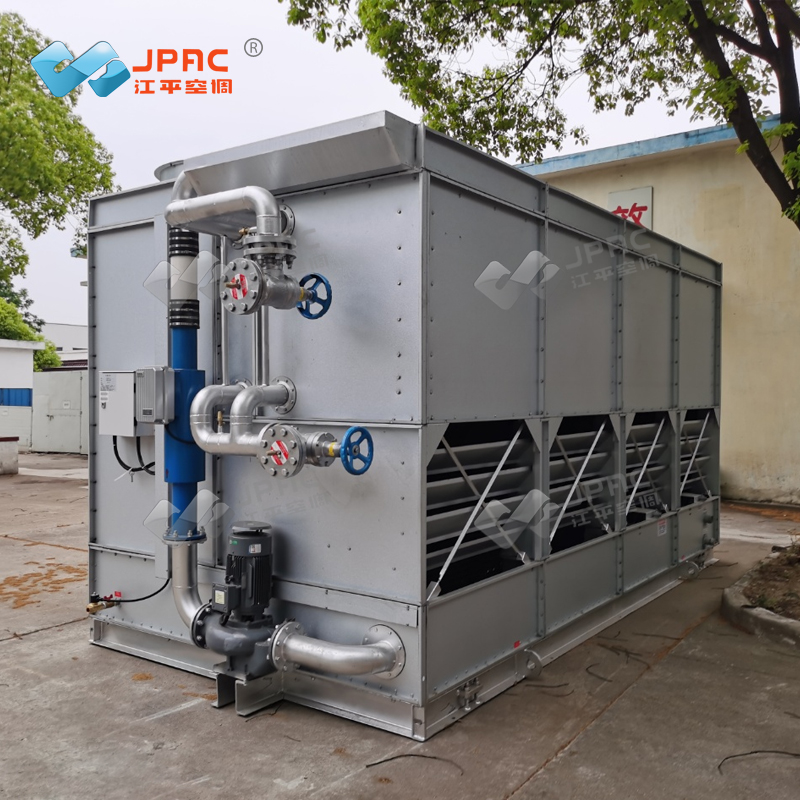

Integrated Evaporative Condensing Water Chiller

We're professional evaporative cooling ac unit manufacturers and suppliers in China, to buy or wholesale evaporative condensing water chiller from our factory. For quotation or if you have any questions, contact us  now for customized evaporative condensing water cooled chiller and price.

Product features of evaporative cooling ac unit

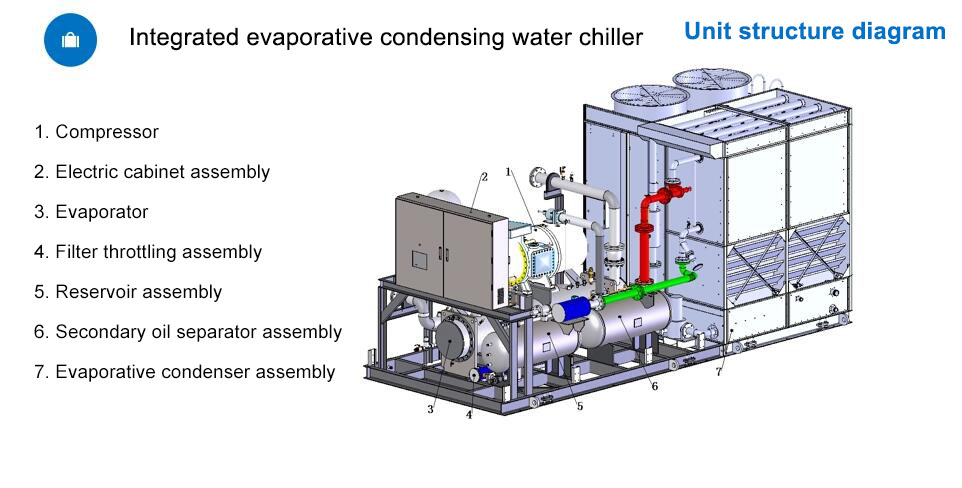

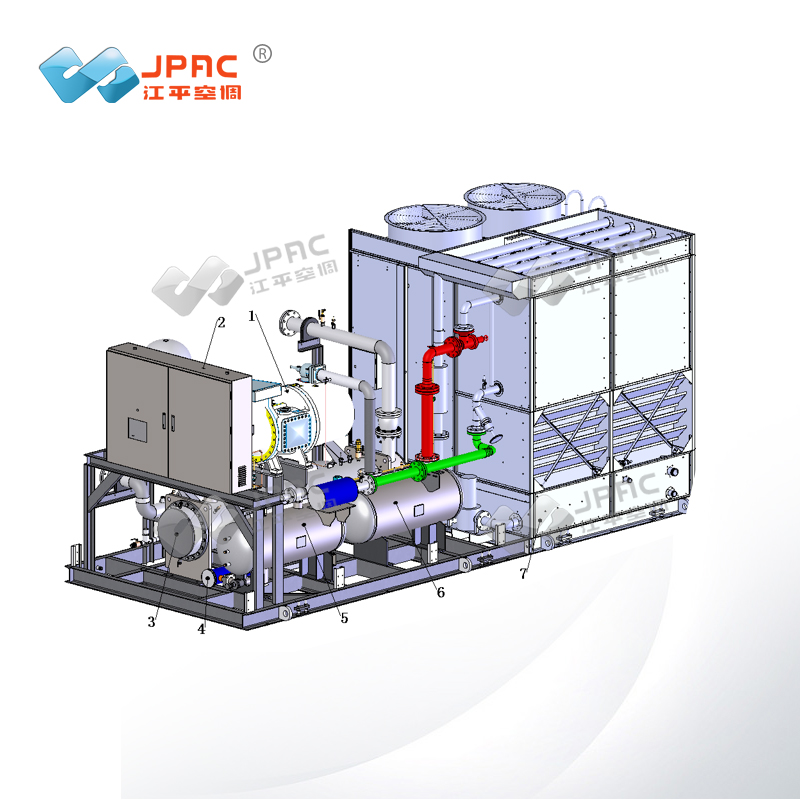

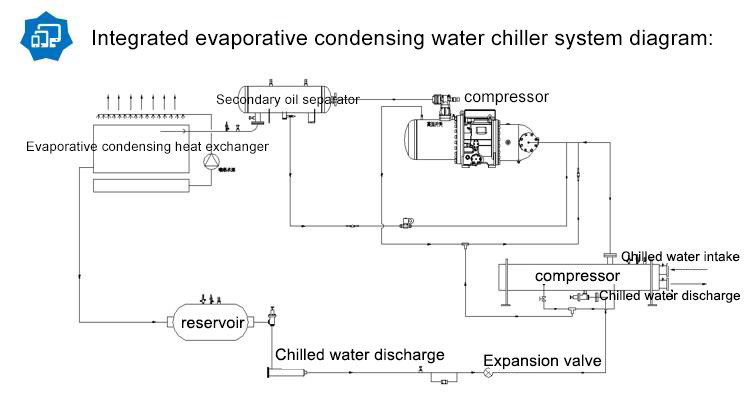

● With integrated structure design, the compressors, evaporators, evaporative condenser, refrigerating hydraulic module (including chilled water pump, water filter, make-up valve), water-treatment plant and control system are put into modular framework, the structure is compact and covers a small area. The customers only need to connect refrigerated water pipes and power to have high-efficiency operation;

● The unit adopts modular design to break up the whole into parts, which is for convenient transportation and site hoisting. It can realize network operation of three module units of the intended size of a single unit;

● Full liquid evaporative cooling high efficiency screw compressor, with the most advanced screw tooth design, high precision processingtechnology, the volume efficiency up to 95%. The high efficiency fluorine resistant motor with the international famous brand has been used, and it is in the best efficiency on all kinds of working conditions;

● High-efficiency full liquid evaporation technology, the thermal efficiency is more than 3 times higher than

traditional dry evaporator, and the refrigeration energy efficiency of the unit can increase 14%;

● It adopts high efficiency evaporative condenser: the condensation heat of refrigerant is directly discharge to outside air like discharge thewater. There's no cooling water system intermediate heat exchange link. The condensation temperature of the unit can be reduced by about 4℃, and the energy efficiency ratio can be increased by 12% compared with the traditional water-cooled unit. At the same time, the cooling water pump can be saved and the input power consumption can be greatly reduced;

● The compressor is fully linked with the condenser fan and water pump. It will automatically switch off parts or all condensate fan andwater pump during the part loading, which will make the system runs efficiently.

Technical parameters of evaporative cooling ac unit

Model JCWF-BZG(C)T(M)				1195	1210	1230	1260	1280	1315
Refrigerating capacity			KW	684	743	814	917	979	1111
			kcol/h	588240	638980	70040	788620	841940	955460
Power-supply types							380V/3N~/50Hz
Nomial condition total input power			KW	124.9	136.7	152.3	167.6	181.5	200
Nominal condition performance coefficent				5.48	5.44	5.34	5.47	5.39	5.56
co compressor or	Type			Semi-enclosed screw compressort
	Quantity		Platform	1	1	1	1	1	1
	Starting type			Y-△
	Energy regulator			25%~100%
	Nominal input power		kw	111.7	122.7	134.3	152.6	162.0	180.5
	The refrigeration efficiency			6.12	6.06	6.06	6.01	6.04	6.16
Condenser	Type			High efficiency evaporative cond
	Fan	Quantity	台	2	2	2	3	3	3
		Total air volume	m³/h	130000	142000	158000	195000	213000	213000
		Total power	kw	11	11	15	12	16.5	16.5
	Circulating water pump	Quantity	台	1	1	1	1	1	1
		Total power	kw	2.2	3	3	3	3	3
	Supply water quantity		m³/h	0.93	1.01	1.11	1.25	1.33	1.51
Evaporator	Type			High efficiency flooded evaporator
	Water flow rate		m³/h	118	128	140	158	168	191
	Water press drop		kPa	55	55	55	55	55	55
	Diameter of connection pipe		DN	125	125	150	150	150	200
	Water side pressure		MPa	1.0
*Hydraulic module	Water pump number		台	1	1	1	1	1	1
	Refrigerated pump power		kw	15	18.5	18.5	22	22	30
	The outside lift		m	25	25	25	25	25	25
	Volume of expansion tank		L	150	150	200	200	200	300
Refrigerant	Type			R22
Refrigerant	Charge volume		kg	557	571	654	676	725	865
Dimensions	Length		mm	7400	7700	8060	8580	8900	9680
	Wide		mm	2500	2500	2500	2500	2500	2500
	High		mm	4300	4300	4300	4300	4300	4300
Weight	Shipping weight		kg	13300	13200	14000	16100	16700	18800

Evaporative cooling ac unit manufacturer

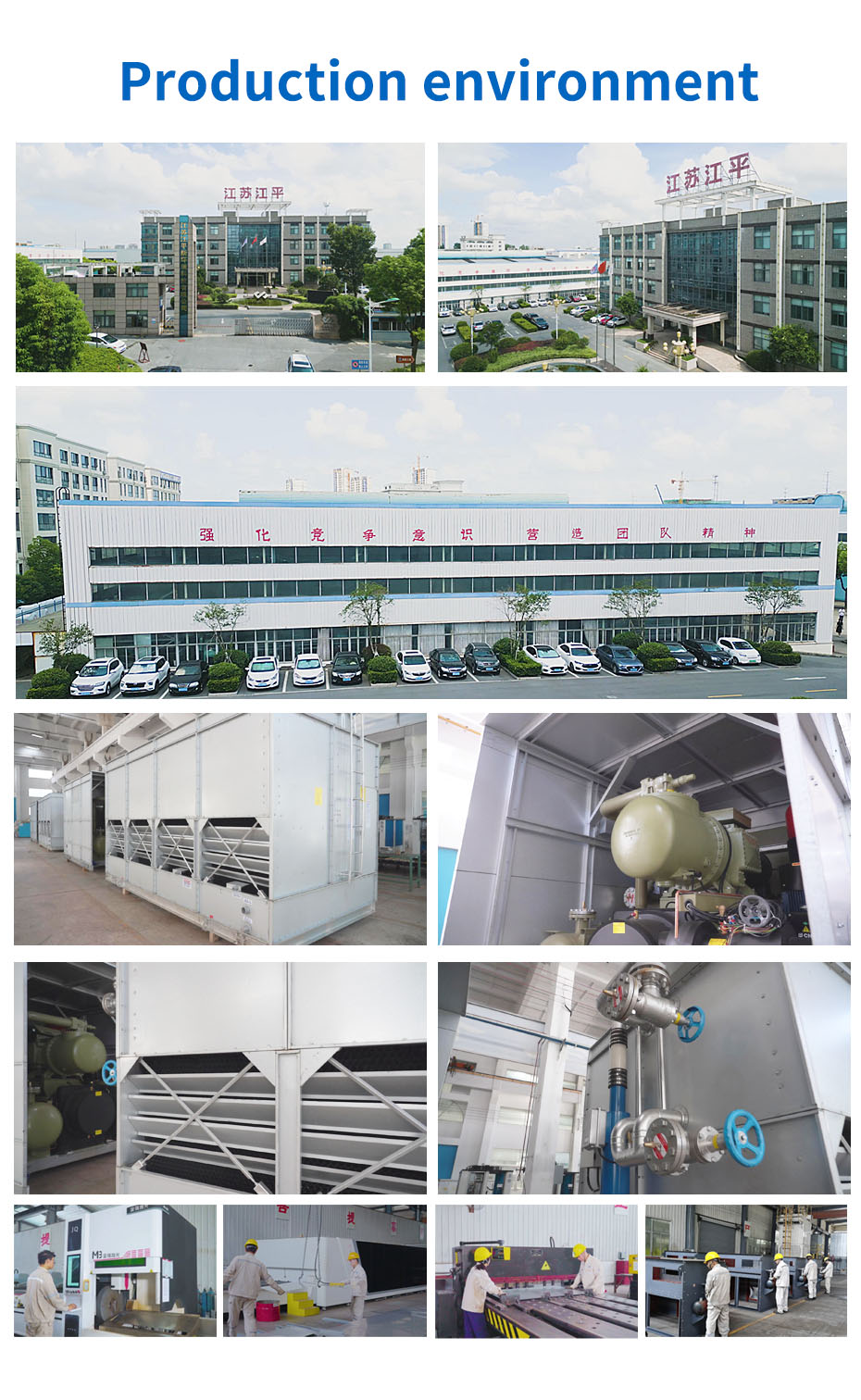

JPAC focuses on providing high-quality evaporative cooling ac unit and excellent service since 1982. We are a professional evaporative cooling ac unit manufacturer and factory of 43000M² which mainly produce central air conditioning units and dust collector products for around 44 years’ experience. JPAC provides you with evaporative cooling ac unit wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
