Overflow screw chiller is also called water cooled screw chiller or water cooled screw compressor chiller.

● Using flooded special screw compressor and flooded evaporation heat transfer technology, the energy efficiency ratio of the unit is as high as 5.7;
● Adopting new low-fin heat transfer strong overflow heat exchange tubes and optimized designed refrigerant distributor, the heat transfer system is 3 times that of the dry evaporator, effectively improving the unit’s refrigeration capacity and energy efficiency ratio.
Availability:
Quantity:
Inquire Add to Basket

We're professional overflow screw chiller manufacturers and suppliers in China, to buy or wholesale water cooled screw chiller from our factory. For quotation or if you have any questions, contact us now for customized screw water chiller and price.


Product features of overflow screw chiller

● It adopts overflow type screw compressor and new-style efficient heat transfer technology, energy efficiency ratio can reaches up to 5.7;

● It adopts new-style low wing heat transfer strong overflow heat exchange tube and optimally designed refrigerant distributor. It is three times of the heat transfer system dry evaporator, which has improved the unit refrigerating capacity and energy efficiency ratio;

● The unit adopts seventh security protection, and has real-time detection control to high-low pressure, exhaust gas temperature and temperature, which can ensure the safe operation of the unit;

● According to the water temperature changes of air conditioning, the unit can adopt fuzzy control principleto steplessly adjust compressor capacity, then to match the actual air-conditioning load. The part of the load performance coefficient is higher.


Technical parameters of overflow screw chiller

Unit Model JCWF 1080B 1100B 1120B 1150B 1180B 1200B 1220B 1255B 1270B 1310B 1340B 1380B 1440B 1510B 1380B 1440B 1510B
Refrigerating capacity KW 275 345 416 525 630 680 768 892 957 1095 1195 1340 1550 1800 1340 1550 1800
kcal/h 236500 296700 357800 451500 541800 584800 660500 767100 823000 941700 1027700 1152400 1333000 1548000 1152400 1333000 1548000
Input power KW 52.5 63.5 77.4 96 115.9 124 138 157.6 172.8 193.4 212 238 275 319 238 275 319
Rated current A 96 118 138 171 184 222 260 294 324 353 380 400 471 541 25.8/15.3 29.8/17.7 34.2*/20.3*
Power type 380V/3N~/50Hz 6000V/10000V/3N~/50Hz
Energy control range 25%~100%
Compressor Type Semi-closed screw type
Starting mode Y Direct starting
Quantity Platform 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Oil heater w 300
Evaporator Type The overflow type efficient heat transfer
Water volume m³/h 47 59 72 90 108 117 132 153 165 188 206 230 267 310 230 267 310
Pressure drop kPa 45 45 45 48 78 78 81 78 77 77 85 85 85 85 85 85 85
Tubing specification DN 100 100 100 125 125 125 150 150 150 150 200 200 200 200 200 200 200
Condenser Type Horizontal Shell and Tube Horizontal ty
Water volume m³/h 59 74 89 113 135 146 165 192 206 235 257 288 333 387 288 333 387
Pressure drop kPa 50 52 52 55 80 80 80 80 80 80 88 88 88 88 88 88 88
Tubing specification DN 100 100 125 125 150 150 150 150 150 200 200 200 200 250 200 200 250
Retrigerant Variety R22
Charge volume kg 100 115 115 120 175 175 160 205 205 215 245 260 300 330 260 300 330
Dimensions Length mm 3100 3100 3100 3000 3650 3650 3550 3600 3600 3700 3750 3750 3700 3800 3750 3750 3800
Wide mm 1120 1120 1260 1260 1450 1450 1550 1650 1650 1600 1700 1700 2200 2200 2350 2350 2350
High mm 1700 1700 1800 1850 2050 2200 2200 2250 2250 2300 2500 2500 2850 2850 2800 2850 2850
weight  Shipping weight [approx.] kg 2400 2550 2800 3100 3500 3550 3600 4000 4000 4350 5550 5800 7000 7200 5800 7000 7200
 Operating weight [approx.] kg 2550 2700 3000 3300 3750 3800 3850 4300 4300 4700 5950 6250 7550 7790 6250 7550 7790


Overflow screw chiller manufacturer

JPAC focuses on providing high-quality overflow screw chiller and excellent service since 1982. We are a professional overflow screw chiller manufacturer and factory of 43000M2 which mainly produce central air conditioning units and dust collector products for around 44 years' experience. JPAC provides you with overflow screw chiller wholesale, customization, design, packaging, industry solutions and OEM & ODM service.


Where to buy overflow screw chiller?

If you have any questions about overflow screw chiller, water cooled screw chiller, water cooled screw compressor chiller, screw water chiller, water screw chiller, please don't hesitate to contact us at any time. We will provide detailed information and technical support about central air conditioning units and dust collectors’ features, specifications, solutions and customization options... Welcome you to visit our factory!



Unit Model JCWF 2016B 2200B 22408 2270B 2300B 2330B 2360B 2390B 2410B 2440B 2470B 2510B 2530B
Refrigerating capacity KW 550 690 832 950 1050 1160 1260 1360 1448 1524 1654 1784 1860
kcal/h 473000 593400 715520 817000 903000 997600 1083600 1169600 1245300 1310600 1422400 1534200 1599600
Input power KW 105 127 154.8 177.5 192 214 231.8 248 256 276 295.6 315.2 330.4
Rated current A 96+96 118+118 138+138 138+177 171+171 171+184 184+184 222-222 222+260 222+260 260+260 294+294 294+324
Power type 80V/3N-/20Hz
Energy control range 12.5%-100%
Compressor Type Semi-closed screw type
Starting mode Y
Quantity Platform 2 2 2 2 2 2 2 2 2 2 2 2 2
Oil heater w 300
Evaporator Type The overflow type efficient heat transfer
Water volume m³/h 59 119 143 163 181 200 217 234 249 262 284 307 320
Pressure drop kPa 62 63 62 62 63 60 66 60 66 72 67 63 67
Tubing specification DN 125 125 150 150 150 200 200 200 200 200 200 200 200
Condenser TypeType Horizontal type shell tubular
Water volume m³/h 118 148 179 204 226 249 271 292 311 328 356 384 400
Pressure drop kPa 55 55 58 58 58 60 60 60 58 60 60 55 60
Tubing specification DN 125 150 150 150 200 200 200 200 200 200 200 250 250
Wei Xin Variety R22
Charge volume kg 190 220 240 280 320 350 350 410 410 410 425 470 470
Dimensions Length mm 4500 4650 4550 4600 4700 4700 4700 4700 4600 4600 4600 4850 4850
Wide mm 1450 1500 1600 1650 1600 1650 1800 1850 1850 1850 1850 2100 2100
High mm 1900 1900 1950 1950 2000 2200 2150 2200 2300 2300 2300 2300 2300
weight Shipping weight (approx.) kg 4000 4400 4800 5400 5800 6400 6500 7100 7150 7150 7700 8380 8380
Operating weight [approx.] kg 4350 4750 5200 5800 6200 6950 7050 7650 7780 7780 8350 9150 9150


Unit Model JCWF 2550B 26208 2680B 2760B 2820B 2880B 2950B 2A20B 2760B 2820B 2880B 2950B 2A20B
Refrigerating capacity KW 1914 2190 2390 2680 2890 3100 3350 3600 2680 2890 3100 3350 3600
kcal/h 1646000 1883400 2055400 2304800 2485400 2666000 2881000 2096000 2304800 2485400 2666000 2881000 3096000
Input power KW 339.2 386.8 414 476 513 550 594

513 550 594 638
Rated current A 294+324 353+353 353+380 400+400 406+487 471+471 471+541 541+541


1072330 (2*342).
/(2*203):
Power type 380V/3N-/20Hz 6000V/10000V/3N-/50Hz
Energy control range 12.5%-100%
Compressor Type Semi-closed screw type
Starting mode Y-△ Direct startingDirect starting
Quantity Platform 2 2 2 2 2 2 2 2 2 2 2 2 2
Oil heater w 300 /
Evaporator Type The overflow type efficient heat transfer
Water volume m³/h 329 377 411 461 497 533 576 619 461 497 533 576 619
Pressure drop kPa 72 65 75 75 115 115 116 116 114 115 115 116 116
Tubing specification DN 200 250 250
250 250 300 300 250 250
300
Condenser Type Horizontal type shell tubularHorizontal type shell tubular
Water volume m³/h
471 514 576 621 667 720 774 576 621 667 720 774
Pressure drop kPa 62 58 80 80 111 111 112 114 110 111 111 112 114
Tubing specification DN 250 250 250 250 300 300 300 300 250 300 300 300 300
Refrigerant Variety R22
Charge volume kg 470 505 710 750 800 835 875 900 770 800 835 875 900
Dimensions Length mm 4850 4650 4650 5400 5950 5950 5850 5850 5850 5950 5950 5850 5850
Wide mm 2100 2100 2100 2100 2300 2300 2350 2350 2500 2500 2500 2550 2550
High mm 2300 2350 2500 2500 3000 3000 3050 3050 3000 3000 3000 3050 3050
14  Shipping weight (approx.) kg 8380 8800 11200 11500 11850 12750 13350 13550 11650 11850 12750 13350 13550


Unit Model JCW Unit Model JCW 1080BH 1100BH 1120BH 1150BH 1180BH 1200BH 1220BH 1255BH 1270BH 1310BH 1340BH 1380BH 1440BH 1510BH
Refrigeration capacityRefrigerating capacity KW 275 345 416 525 630 680 768 892 957 1095 1195 1340 1550 1800
kcal/h 236500 296700 357800 451500 541800 584800 660500 767100 823000 941700 1027700 1152400 1333000 1548000
Hot recycling KW 83 104 125 158 189 204 230 268 287 329 358 402 465 540
Input power KW 52.5 63.5 77.4 96 115.9 124 138 157.6 172.8 193.4 212 238 275 319
Rated currentRated current A 96 118 138 171 208 217 252 279 305 340 364 406 471 541
Power typePower type 380V/3N~/50Hz
Energy control rangeEnergy control range 25%~100%
PryCompressor TypeType Semi-closed screw type
Starting modeStarting mode Y-△
QuantityQuantity Platform 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Oil heaterOil heater w 300
Evaporator TypeType The overflow type efficient heat transfer
Water volumeWater volume m³/h 47 59 72 90 108 117 132 153 165 188 206 230 267 310
Pressure drop kPa 45 45 45 48 78 78 181 78 77 77 85 85 85 85
Tubing specification ND 100 100 100 125 125 125 150 150 150 150 200 200 200 200
BirdCondenser TypeType Horizontal type she
Water volumeWater volume m³/h 59 74 89 113 135 146 165 192 206 235 257 288 333 387
Pressure drop kPa 50 52 52 55 80 80 80 80 80 80 88 88 88 88
Tubing specification ND 100 100 125 125 150 150 150 150 150 200 200 200 200 250

Water volumeWater volume m³/h 14 18 21 27 33 35 40 46 49 57 62 69 81 94
Pressure drop kPa 36 44 38 50 38 42 47 42 48 42 45 45 56 56
Tubing specification ND 50 50 65 65 65 65 80 80 80 80 100 100 125 125
pear powder Variety R22
Charge volume kg 100 115 115 120 175 175 160 205 205 215 245 260 300 330
Overall dimensions Length mm 3100 3100 3100 3000 3650 3650 3550 3600 3600 3700 3750 3750 3700 3800
Wide mm 1400 1400 1520 1520 1610 1610 1660 1800 1800 1700 1700 1550 2200 2200
High mm 1910 1910 1950 2000 2100 2100 2250 2250 2250 2320 2600 2500 2850 2850
Miles Shipping weight(about)Shipping weight(about) kg 2700 2900 3100 3500 3900 4000 4050 4500 4500 4900 6050 6250 7580 7820
Operating weight(about) kg 2900 3100 3350 3800 4200 4300 4350 4900 4900 5300 6500 6700 8200 8490


Unit Model JCW 21608H 22008H 22408H 2270BH 2300BH 23308H 23608H 2390BH 2410BH 2440BH 2470BH
Refrigerating capacity KW 550 690 832 950 1050 1160 1260 1360 1448 1524 1654
kcal/h 473000 593400 715520 817000 903000 997600 1083600 1169600 1245300 1310600 1422400
Hot recycling KW 165 207 250 285 315 348 378 408 434 457 496
Input power KW 105 127 154.8 177.5 192 214 231.8 248 256 276 295.6
Rated current A 96+96 118+118 138+138 138+177 171+171 173+208 208+208 217+217 217+252 252+252 252+279
Power type 380V/3N~/50Hz
Energy control range 25%~100%
Compressor Type Semi-closed screw type
Starting mode Y-△
Quantity Platform 2 2 2 2 2 2 2 2 2 2 2
Oil heater w 300
Evaporator Type The overflow type efficient heat transfer
Water volume m³/h 95 119 143 163 181 200 217 234 249 262 284
Pressure drop kPa 62 63 62 62 63 40 66 60 66 72 67
Tubing specification ND 125 125 150 150 150 200 200 200 200 200 200
RemarksCondenser Type Horizontal type shell tubularHorizontal type shell tubular
Water volume m³/h 118 148 179 204 226 249 271 292 311 328 356
Pressure drop kPa 55 55 58 58 58 40 60 60 58 40 40
Tubing specification ND 125 150 150 150 200 200 200 200 200 200 200
heat recovery device Water volume m³/h 28 36 43 49 54 60 65 70 75 79 85
Pressure drop kPa 50 50 52 52 52 55 55 55 52 57 56
Tubing specification ND 65 65 80 80 100 100 100 100 100 100 125
Parrot Variety R22
Charge volume kg 190 220 240 280 320 350 350 410 410 410 425
Outine 5420 Dimensions Length mm 4500 4650 4550 4600 4700 4700 4700 4700 4600 4600 4600
Wide mm 1450 1500 1600 1650 1650 1700 1900 1900 1900 1900 1900
High mm 2000 2000 2060 2060 2150 2320 2320 2320 2400 2400 2400
weight Shipping weight (approx.) kg 4500 5000 5500 6200 6600 7300 7500 8150 8200 8200 8800













Previous:
Next:
Overflow screw chiller water cooled screw chiller water cooled screw compressor chiller screw water chiller water screw chiller water chiller water cooled chiller Industrial chiller industrial water chiller air cooled water chiller
Product inquiry

Related Products

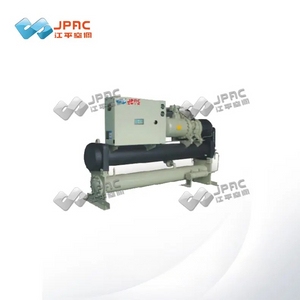

Water Cooled Screw Chiller
Water Cooled Screw Chiller
heat recovery screw chiller
Heat Recovery Screw Chiller
evaporative water chiller
Evaporative Condensing Screw Chiller

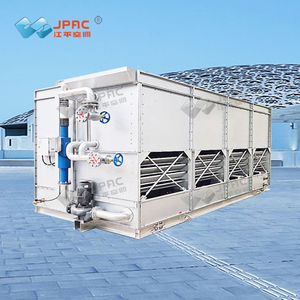

Integrated Evaporative Condensing Water Chiller
