Bag Type Dust Collector

Our bag type dust collector, also known as industrial baghouse dust collectors, delivers up to 99.8% filtration efficiency. It features modular, laser-cut construction for durability and reliability in mining, chemical, and metallurgy applications.

● Dust removal efficiency can reach more than 99%;
● Adapt to industrial production of various scales;
● Handle various types of dust;
● Stable and reliable operation.

Availability:

Quantity:



Inquire Add to Basket

Product Description

We're professional bag type dust collector manufacturers and suppliers in China, to buy or wholesale bag house dust collector from our factory. For quotation or if you have any questions, contact us now for customized bag house collector and price.

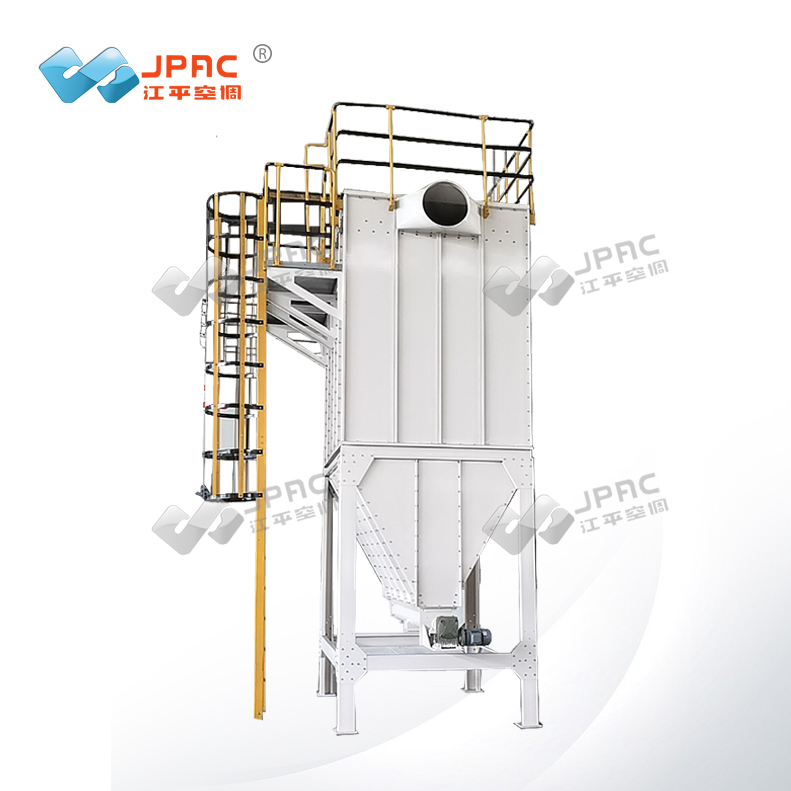

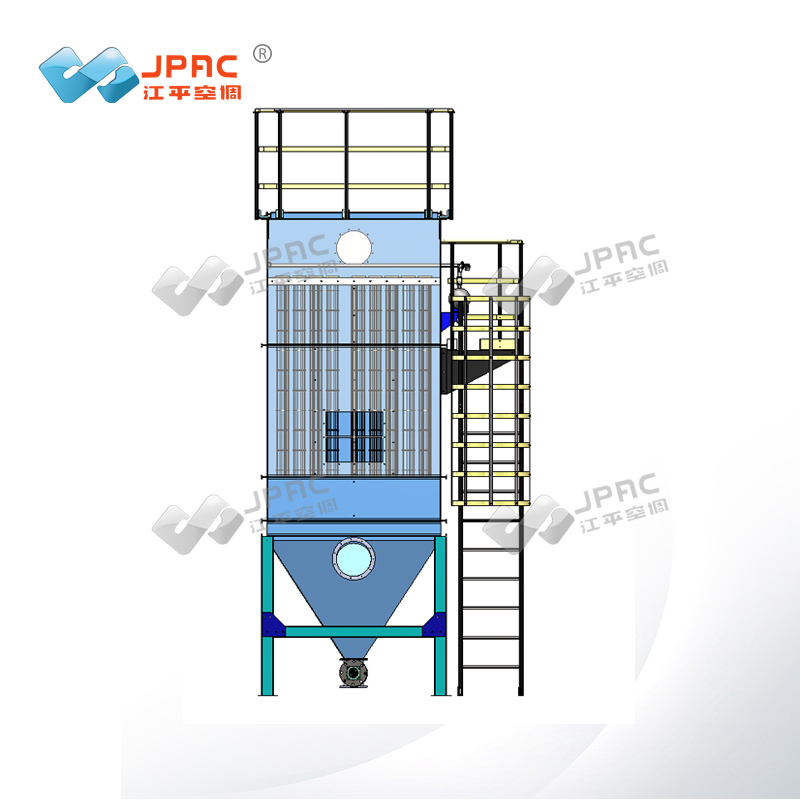

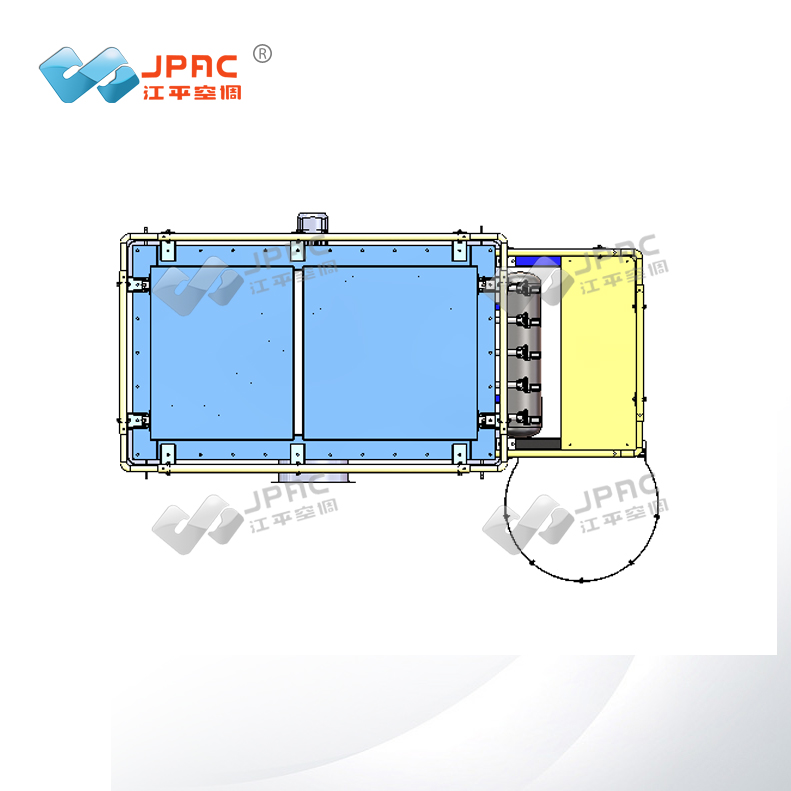

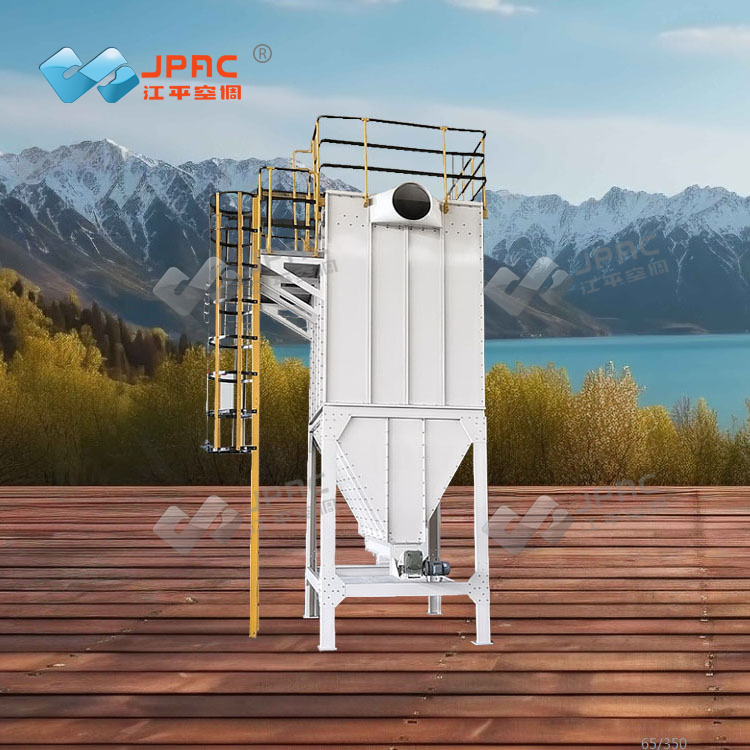

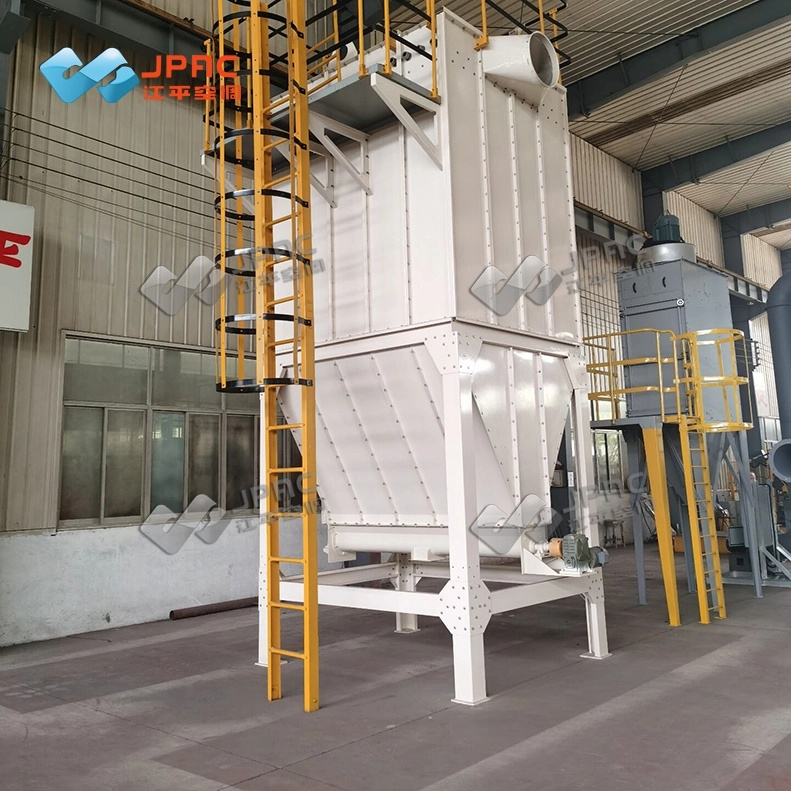

Appearance Reference

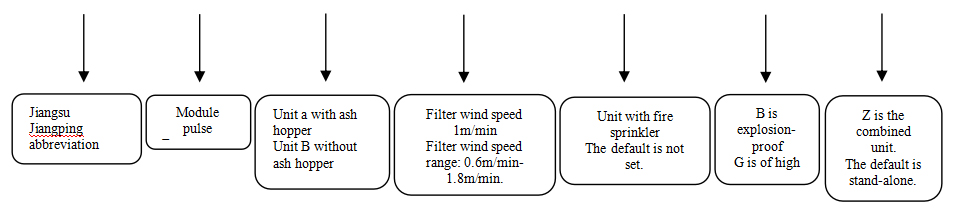

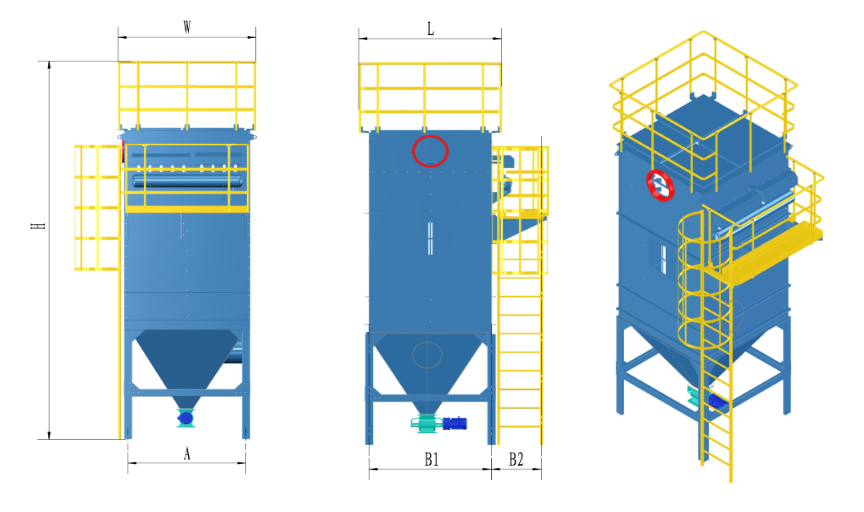

Symbol standard of bag house dust collector

Advantage

Adopting high-precision laser processing equipment and scientific and environmentally friendly surface electrostatic spraying, the entire dust collector does not require welding and is assembled by riveting with bolts and skid-mounted, making it suitable for assembly in narrow Spaces. It features high strength, excellent sealing, high efficiency, an elegant and generous appearance, and long-lasting durability. For engineering renovation projects, simplifying the difficulty of the renovation work shortens the construction period, reduces construction costs and risks.

Technical parameters

Product Model		JPCMD-45A	JPCMD-54A	JPCMD-60A	JPCMD-72A	JPCMD-84A	JPCMD-96A	JPCMD-108A
Airflow Rate (m³/h)		3240	3880	4320	5184	6048	6900	7800
Airflow Range (m³/h)		3000-5100	2800-4000	3000-4680	3450-5613	4032-6550	4608-7500	5184-8424
Filter Area (m²)		45	54	60	72	84	96	108
Filtration Velocity (m/min)		0.8-1.3	0.8-1.3	0.8-1.3	0.8-1.3	0.8-1.3	0.8-1.3	0.8-1.3
Equipment Resistance (Pa)		＜800	＜800	＜1000	＜1000	＜1200	＜1200	＜1200
Dust Removal Efficiency (%)		99.9	99.9	99.9	99.9	99.9	99.9	99.9
Inlet Dust Concentration (g/m³)		＜30	＜30	＜30	＜30	＜30	＜30	＜30
Number of Pulse Valves		5	6	6	6	7	8	9
Air Consumption (m³/min)		0.3	0.4	0.4	0.4	0.4	0.5	0.5
Fan	Model	4-72No3.6A	4-72No3.6A	4-72No3.6A	4-72No-4A	4-79No4A	4-72No-4.5A	4-72No4.5A
	Airflow (m³/h)	2664-5268	2664-5268	2664-5268	4012-7419	4670-9080	5712-10562	5712-10562
	Total Pressure (Pa)	1578-989	1578-989	1578-989	2014-1320	2170-1275	2554-1618	2554-1618
	Rotational Speed (r/min)	2900	2900	2900	2900	2900	2900	2900
	Motor Power (kW)	Y160L-2(3KW)	Y160L-2(3kw)	Y160L-2(3kw)	Y132S1-2(5.5kw)	Y132S1-2(5.5kw)	Y132S2-2(7.5kw)	Y132S2-2(7.5kw)
Ash discharge valve	Ash Discharge Valve Size (mm)	200*200	200*200	200*200	200*200	200*200	200*200	200*200
	Gearbox Model	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55
	Rotational Speed (r/min)	48	48	48	48	48	48	48
	Motor Power (kW)	0.55	0.55	0.55	0.55	0.55	0.55	0.55
Operating temperature (°C)		＜130 instantaneous 150℃	＜130 instantaneous 150℃	＜130 instantaneous 150℃	＜130 instantaneous 150℃	＜130 instantaneous 150℃	＜130 instantaneous 150℃	＜130 instantaneous 150℃
Filter bag specifications (mm)		φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500
Screw conveyor		○	○	○	○	○	○	○
Vibrating motor		○	○	○	○	○	○	○
Differential pressure transmitter		○	○	○	○	○	○	○
Temperature transmitter		○	○	○	○	○	○	○
Fire sprinkler system		○	○	○	○	○	○	○
Level gauge		○	○	○	○	○	○	○
Audible and visual alarm		○	○	○	○	○	○	○
Weight (kg)		2800	2950	3130	3250	3350	3500	3650
Overall dimensions (LWH) mm		109019004900	129019005050	134419685100	129623205300	146423205300	163223205300	180023205300

Product Model		JPCMD-120A	JPCMD-144A	JPCMD-168A	JPCMD-180A	JPCMD-216A	JPCMD-252A	JPCMD-288A	JPCMD-300A	JPCMD-360A
Airflow Rate (m³/h)		8640	10400	12096	12960	15500	18144	20730	22000	26000
Airflow Range (m³/h)		6000-9500	7000-11232	8064-13104	8640-14040	10400-16848	15120-20400	17280-22464	18000-23400	22000-30000
Filter Area (m²)		120	144	168	180	216	252	288	300	360
Filtration Velocity (m/min)		0.8-1.3	0.8-1.3	0.8-1.3	0.8-1.3	0.8-1.3	1.0-1.3	1.0-1.3	1.0-1.3	1.0-1.3
Equipment Resistance (Pa)		＜1200	＜1200	＜1200	＜1200	＜1200	＜1200	＜1200	＜1200	＜1200
Dust Removal Efficiency (%)		99.9	99.9	99.9	99.9	99.9	99.9	99.9	99.9	99.9
Inlet Dust Concentration (g/m³)		＜30	＜30	＜30	＜30	＜30	＜30	＜30	＜30	＜30
Number of Pulse Valves		10	12	14	15	18	21	24	25	30
Air Consumption (m³/min)		0.6	0.7	0.8	0.8	1	1.2	1.3	1.5	1.5
Fan	Model	4-79No4.5A	4-72No5A	4-72No5A	4-79No5A	4-72No6C	4-72No-8C	4-72No8C	4-72No8C	4-72No8C
	Airflow (m³/h)	6640-12920	7728-15455	7728-15455	9100-17720	10314-20628	17463-22435	17463-22435	19646-25240	24982-32380
	Total Pressure (Pa)	2695-1617	3187-2019	3187-2019	3334-2000	2734-1733	2478-2390	2478-2390	3143-3032	2303-1816
	Rotational Speed (r/min)	2900	2900	2900	2900	2240	1600	1600	1800	1600
	Motor Power (kW)	Y160M1-2(11kw)	Y160M2-2(15kw)	Y160M2-2(15kw)	Y160M2-2(15kw)	Y60L-4(15kw)	Y180M-2(22kw)	Y180M-2(22kw)	Y200L 1-2(30kw)	Y200L 1-2(30kw)
Ash discharge valve	Ash Discharge Valve Size (mm)	200*200	200*200	200*200	200*200	200*200	200*200	300*300	300*300	300*300
	Gearbox Model	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.55	BLD1-29-0.75	BLD1-29-0.75	BLD1-29-0.75
	Rotational Speed (r/min)	48	48	48	48	48	48	48	48	48
	Motor Power (kW)	0.55	0.55	0.55	0.55	0.55	0.55	0.75	0.75	0.75
Operating temperature (°C)		＜130 instantaneous 150℃	＜130 instantaneous 150℃	＜130 instantaneous 150℃	＜130 instantaneous 150℃	＜130 instantaneous 150℃	＜130 instantaneous 150℃	＜130 instantaneous 150℃	＜130 instantaneous 150℃	＜130 instantaneous 150℃
Filter bag specifications (mm)		φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500	φ130*2500
Screw conveyor		○	○	○	●	●	●	●	●	●
Vibrating motor		○	○	○	●	●	●	●	●	●
Differential pressure transmitter		○	○	○	○	○	○	○	○	○
Temperature transmitter		○	○	○	○	○	○	○	○	○
Fire sprinkler system		○	○	○	○	○	○	○	○	○
Level gauge		○	○	○	○	○	○	○	○	○
Audible and visual alarm		○	○	○	○	○	○	○	○	○
Weight (kg)		3800	4100	4250	4500	4600	5000	5300	5600	6000
Overall dimensions (LWH) mm		196823205300	230423205300	26402325500	280823205540	331223205540	381623205540	432023205650	448823205650	532823205650

●Standard Configuration ○Optional configuration

Application

It is widely used in places such as mines, chemical industries, coal and building materials, metallurgy, power, steel, and docks where air purification and environmental governance are required.

Bag type dust collector manufacturer

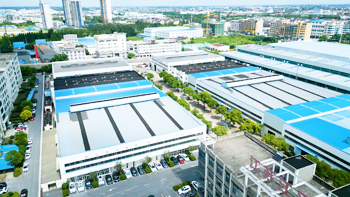

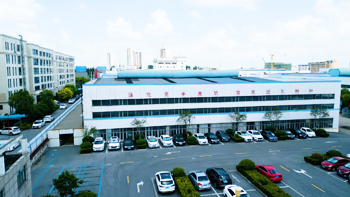

JPAC focuses on providing high-quality bag house dust collector and excellent service since 1982. We are a professional bag house dust collector manufacturer and factory of 43000M² which mainly produce central air conditioning units and dust collector products for around 44 years’ experience. JPAC provides you with bag house dust collector wholesale, customization, design, packaging, industry solutions and OEM & ODM service.

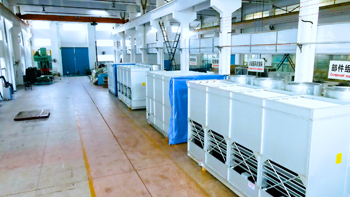

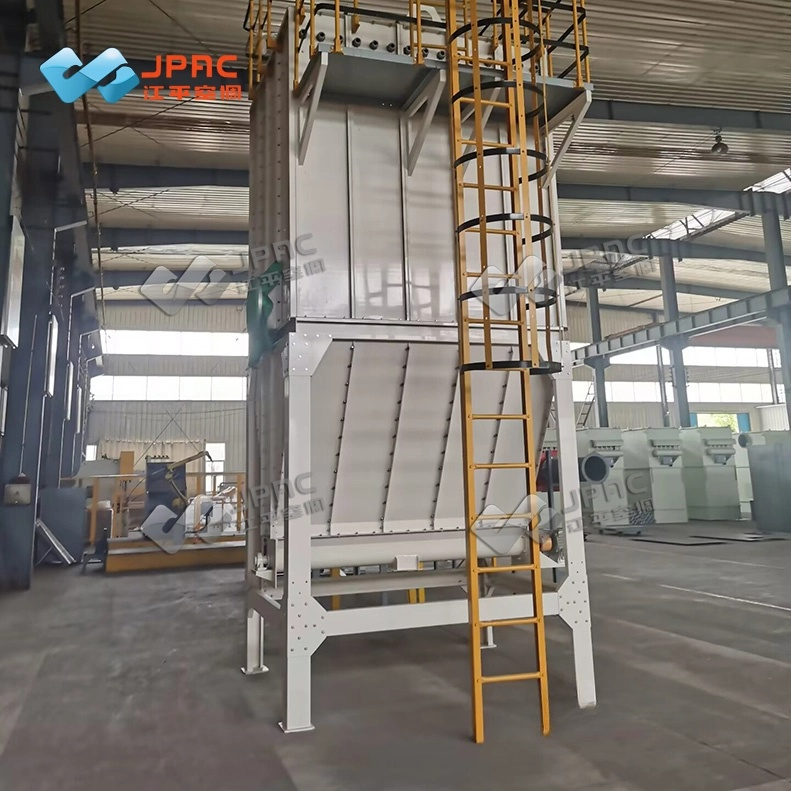

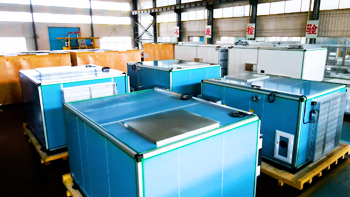

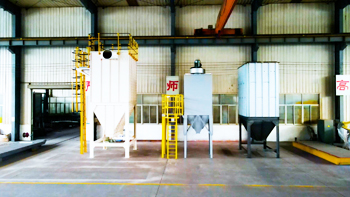

production environment
