long bag low pressure pulse bag dust collector

Pulse Dust Collector

Our pulse dust collector series offers models like Air Box, Flat Bag, Long Bag Low Pressure Pulse Bag, and Explosion Proof types. High-efficiency dust collector systems deliver 99.8% filtration. Our pulse jet type dust collector features modular, laser-cut design for reliable operation in mining, chemical, and metallurgy applications

● Dust Removal Efficiency: 99.8%;
● Fully Automated Laser Processing System;
● Modular Bolted Assembly Structure;
● High-Voltage Electrostatic Powder Coating on Enclosure;
● Robust Construction | Hermetic Sealing | High Energy Efficiency;
● Engineered for 20-Year Service Life;

E-mail: logos@jsjpxhj.com

Mobile: +86-19105206010
Whatsapp: +86-19105206010

Availability:

Quantity:



Inquire Add to Basket

Pulse Bag Dust Collectors

Utilizing high-precision laser processing equipment and environmentally friendly electrostatic powder coating, the entire dust collector requires no welding, resulting in high strength, excellent sealing, high efficiency, and an aesthetically pleasing design. The equipment is also highly durable.

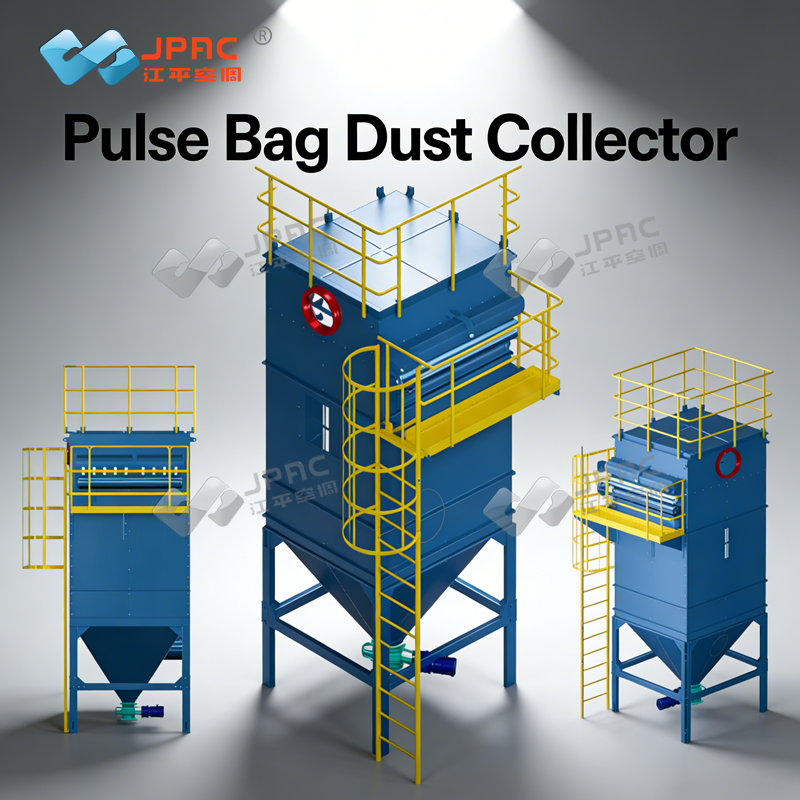

Pulse Bag Dust Collector
It features strong explosion resistance, simple operation, high purification efficiency, large gas processing capacity, and stable performance. It can be designed with explosion relief and explosion isolation devices to reduce the risk of combustion and explosion.

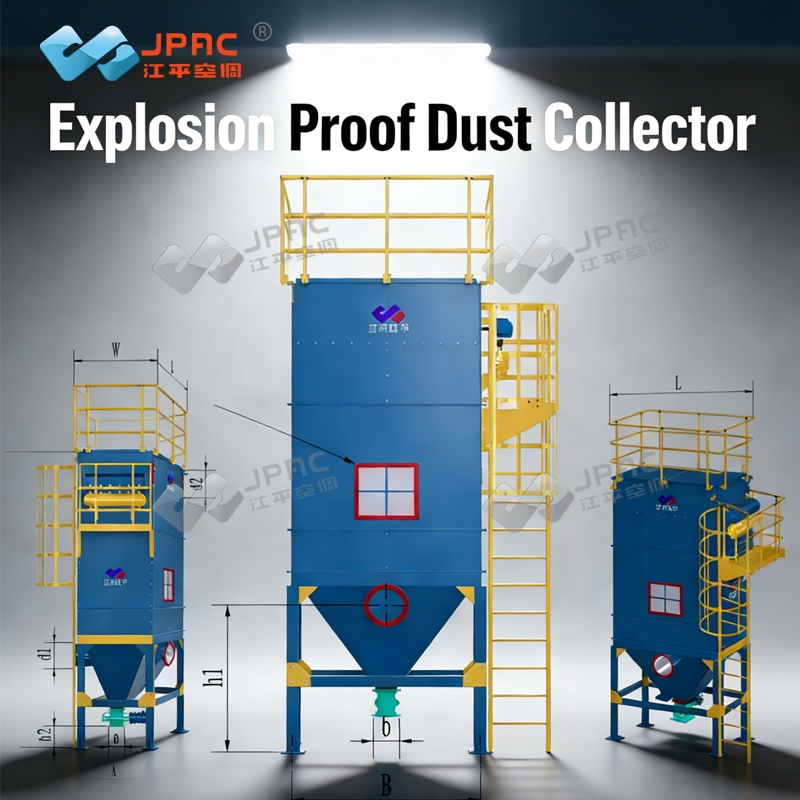

Explosion Proof Dust Collector
Modular bolted connections, on-site assembly, easy handling, high-pressure electrostatic spraying, strong corrosion resistance, and durability make it suitable for installation in confined spaces and within high-rise buildings.

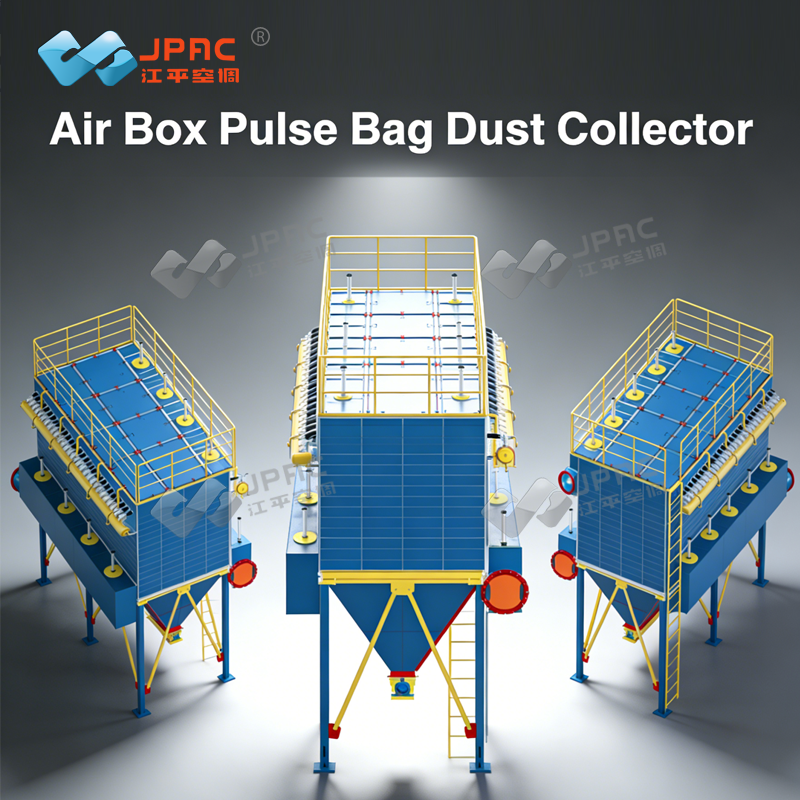

Air Box Pulse Bag Dust Collector
Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.More than 10 precision production line, easy to realize large quantities of goods, to provide you with the best price.

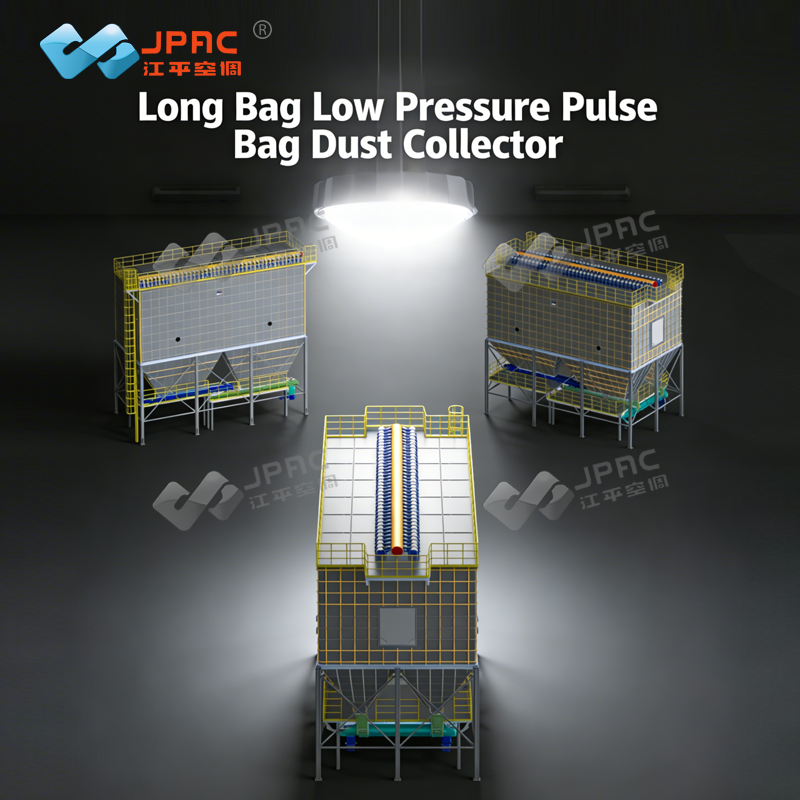

Long Bag Low Pressure Pulse Bag Dust Collector

Pulse Bag Dust Collector

Suitable for applications in mines, chemical plants, coal and building materials industries, metallurgy, power generation, steel mills, ports, and other places requiring air purification and environmental treatment.

Explosion Proof Dust Collector

Suitable for hazardous locations prone to dust explosions, such as mines, chemical plants, coal mines, building materials factories, metallurgical plants, power plants, steel mills, and docks.

Air Box Pulse Bag Dust Collector

It is applied in crushing and packaging systems in cement plants, dust collection systems for grinding mills, and for dust collection from exhaust gases in metallurgy, chemical industry, machinery, and civil boilers.

Long Bag Low Pressure Pulse Bag Dust Collector

It is applied in fields such as steelmaking electric furnaces, boilers, blast furnace gas purification, pulverized coal preparation, asphalt concrete production, building materials, chemical industry, aluminum electrolysis, and zinc smelting.

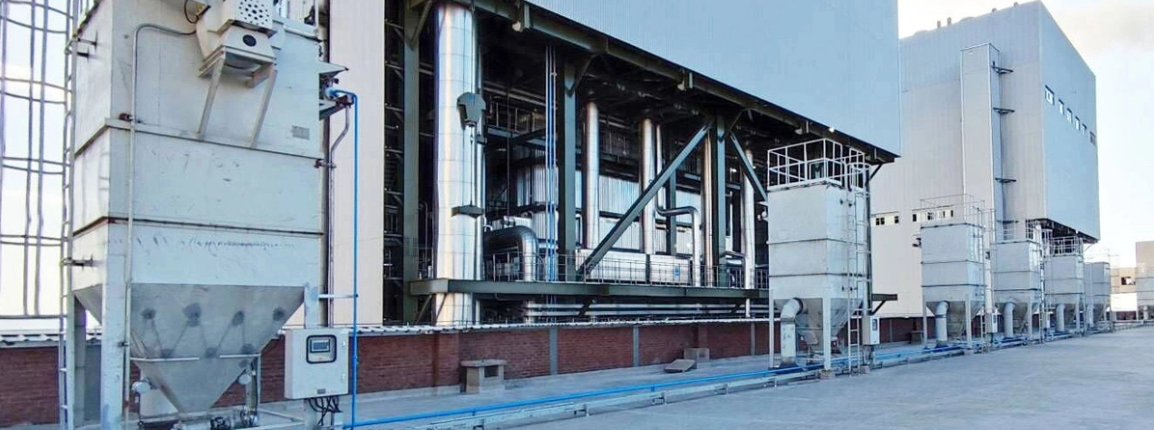

Project Case

JPAC Environmental objectives: We are committed to continuously improving environmental protection technology and product performance, providing more efficient dust control, air purification and other solutions for various enterprises.

Cleaning Method vs. Filter Bag Parameter Guide

Rapping Cleaning

Weight range: 300-350 g/m²

Air permeability range: 400-600 L/dm²·min @ 200 Pa

Mechanical vibration removes dust; suitable for loose dust conditions.

Shaking & Reverse-Air Cleaning

Weight range:350-450 g/m²
Air permeability range:250-400 L/dm²·min @ 200 Pa

Low-frequency shaking combined with reverse airflow; moderate bag weight required.

Low-Pressure Cleaning

Weight range: 400-500 g/m²
Air permeability range: 150-350 L/dm²·min @ 200 Pa

Low-pressure pulse cleaning; thicker filter media needed to maintain integrity.

Pulse-Jet Cleaning

Weight range: 500-650 g/m²
Air permeability range: 20-200 L/dm²·min @ 200 Pa

High-pressure instantaneous blow-off; the heaviest and densest bag offers the best abrasion resistance.

Filter Bag Material-Specification & Application

Polyester (PET) | Code: PET

Temperature: Continuous 130℃ | Surge 150℃

Typical industries: Mining, limestone, raw cement milling, steel sintering, alumina conveying, pharmaceuticals, wood processing.

Key properties: Good oxidation resistance; moderate acid/alkali resistance; hydrolysis may affect life at higher temperatures.
Homopolyacrylonitrile (Acrylic) | Code: Acrylic

Temperature: Continuous 125℃ | Surge 140℃

Typical industries: Detergent drying, spray dryers, coal mills, power plant desulphurisation flue gas.

Key properties: Excellent hydrolysis resistance-ideal for moist flue gases.
Polyphenylene Sulfide (PPS) | Code: PPS

Temperature: Continuous 160℃ | Surge 190℃

Typical industries: Coal-fired boilers, waste incineration, metal smelting, chemicals (low-oxidising atmospheres).

Key properties: Moderate oxidation resistance, but outstanding acid/alkali and hydrolysis resistance.

Meta-Aramid (Aramid) | Code: Aramid

Temperature: Continuous 204℃ | Surge 250℃

Typical industries: Asphalt mixing plants, non-ferrous smelting, ceramics/glass kiln fronts, blast furnace gas in steel plants.

Key properties: Good high-temperature performance, but hydrolysis may affect life under high heat and moisture.
Polyimide / Polytetrafluoroethylene (P84 / PTFE) – High-Temperature Corrosion-Resistant Combo

Temperature: Continuous 240°C | Surge 260°C (both)

Typical industries: Chemicals, metal smelting, waste incineration, cement kiln outlets, coal-fired boilers (highly corrosive flue gases).

Key properties: P84 resists thermal shock and offers high filtration precision. PTFE resists all chemical corrosion. Both share the same temperature range and suit aggressive environments.
Fibreglass (GL) | Code: GL

Temperature: Continuous 200℃ | Surge 280℃

Typical industries: Cement kiln outlets, blast furnaces, industrial boilers.

Key properties: Excellent oxidation resistance, but mechanical stress resistance is moderate-care needed during installation and cleaning.

About Us

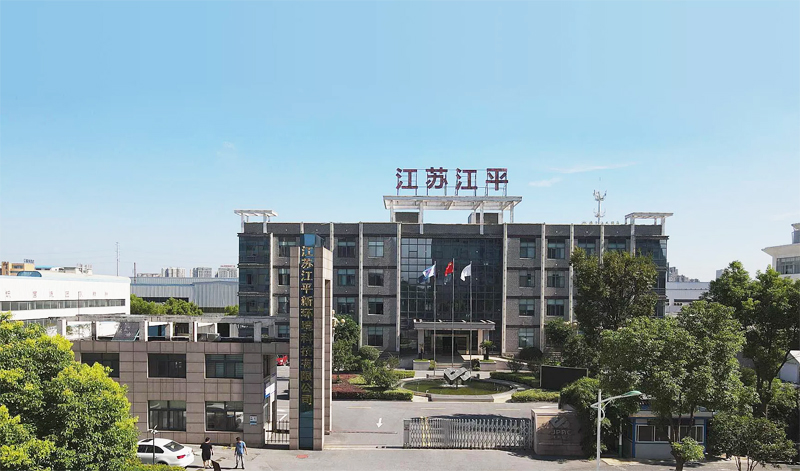

Jiangsu Jiangping New Environmental Technology Co., Ltd was founded in 1982.

The company breaks the original fixed thinking of the industry and adopts the design concept of modularization, standardization and quality to streamline the manufacturing of environmental protection equipment, mass production, reduce costs and shorten the delivery time.

Real Scene Of The Factory

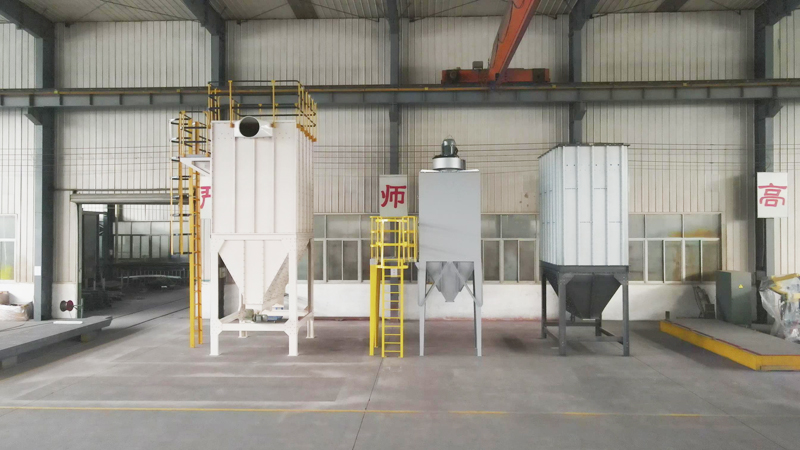

Dust Collector Production Workshop

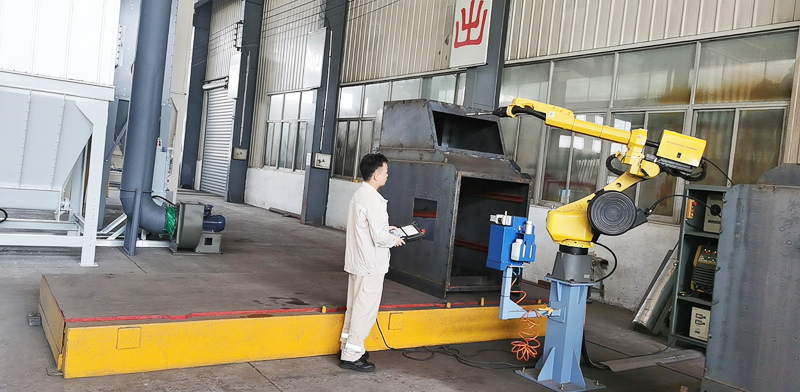

Automatic Welding

Download params to customize

Are you seeking a high - performance dust collector for your industrial needs?

Download our parameter tables to customize it based on exact requirements.

pulse dust collector pulse jet dust collector Pulse bag dust collector pulse jet type dust collector reverse pulse jet dust collector reverse pulse dust collector

Related Products

Pulse Bag Dust Collectors

Explosion Proof Dust Collector

Air Box Pulse Bag Dust Collector

Long Bag Low Pressure Pulse Bag Dust Collector

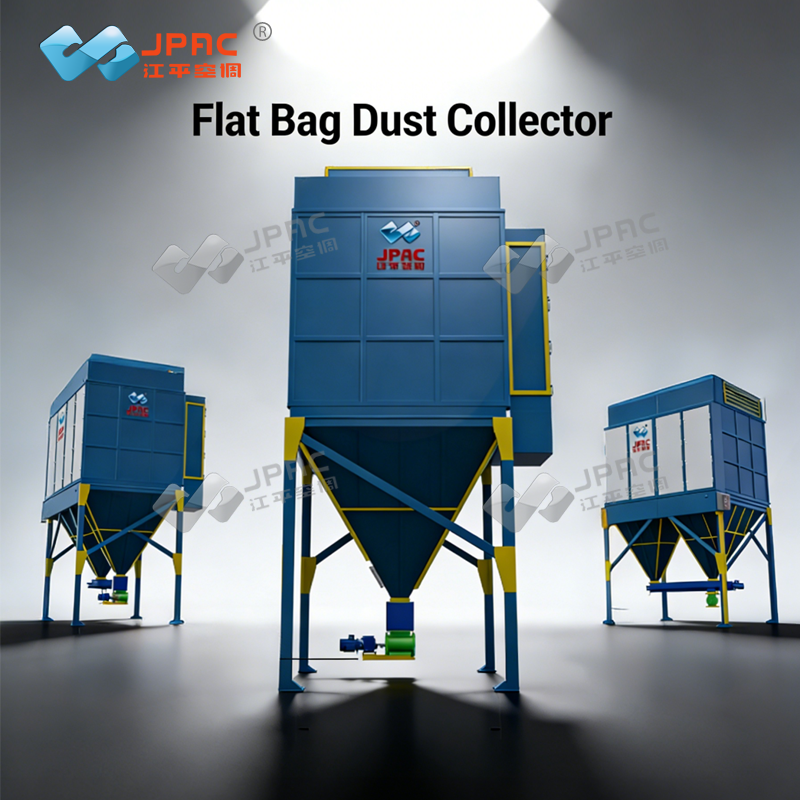

Flat Bag Dust Collector
