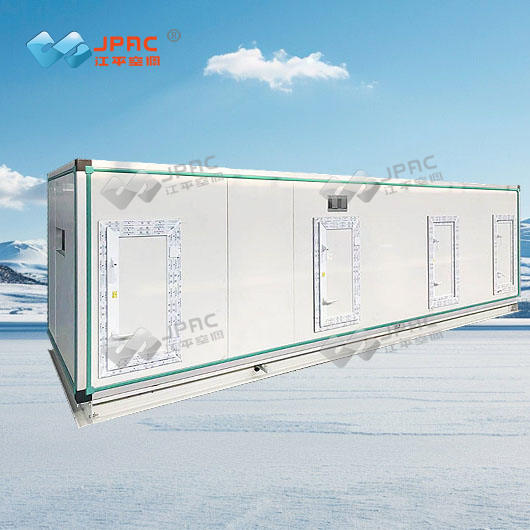

We're professional combination heating air conditioning units manufacturers and suppliers in China, to buy or wholesale combined air conditioning unit from our factory. For quotation or if you have any questions, contact us now for customized air conditioning unit and price.

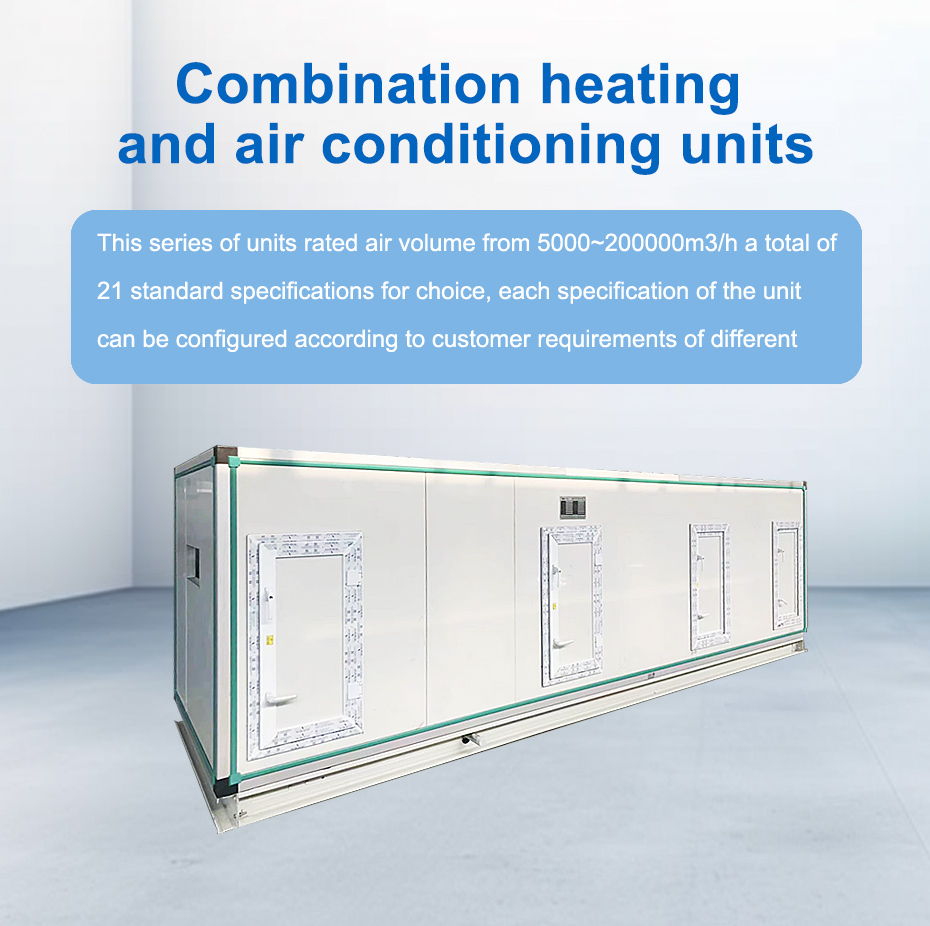

● Rated air volume of the series of unit has 21 standard specifications from 5000 to 200000m³/h for selection.
Every standard unit can equip different function section according to customer's demand;

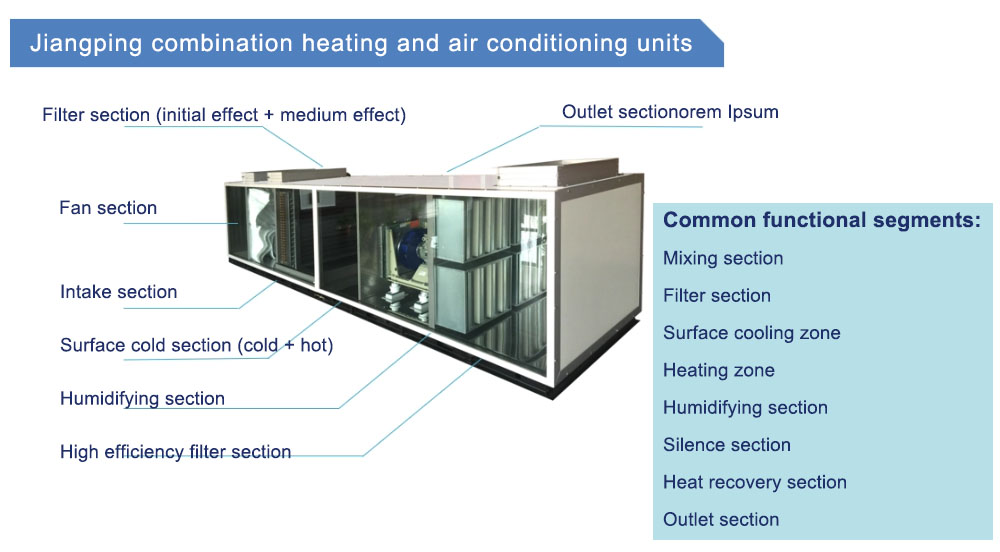

● Function section include: new return section, fresh air exhaust section, initial filtration section, automatic ash removal winding filter section, PM2.5 purification section, electron purification section, indirect evaporative cooling section, direct evaporation cooling section, table cooling section, heating section, humidifier section, fan section, muffler section;
● Customers can realize different air handling requirements by the combination of different functional segments.
Unit air volume selection table
| Unit model | Windward area | Air volume (m³/h) | |||||
| m³ | 2 | 2.25 | 2.5 | 2.75 | 3 | 3.25 | |
| JGK-0.5 | 0.7 | 4895 | 5506 | 6118 | 6730 | 7342 | 7954 |
| JGK-1 | 1.1 | 7937 | 8930 | 9922 | 10914 | 11906 | 12898 |
| JGK-1.5 | 1.4 | 10256 | 11538 | 12820 | 14102 | 15384 | 16666 |
| JGK-2 | 2.4 | 17259 | 19417 | 21574 | 23731 | 25889 | 28046 |
| JGK-2.5 | 2.4 | 17259 | 19417 | 21574 | 23731 | 25889 | 28046 |
| JGK-3 | 2.8 | 20339 | 22881 | 25423 | 27966 | 30508 | 33050 |
| JGK-3.5 | 3.6 | 25978 | 29225 | 32472 | 35720 | 38967 | 42214 |
| JGK-4 | 4.0 | 28616 | 32193 | 35770 | 39347 | 42924 | 46501 |
| JGK-4.5 | 4.5 | 32549 | 36618 | 40687 | 44755 | 48824 | 52893 |
| JGK-5 | 5.1 | 36482 | 41043 | 45603 | 50163 | 54724 | 59284 |
| JGK-5.5 | 5.7 | 41387 | 46560 | 51733 | 56907 | 62080 | 67253 |
| JGK-6 | 6.3 | 45567 | 51263 | 56959 | 62655 | 68351 | 74047 |
| JGK-7 | 7.0 | 50352 | 56646 | 62941 | 69235 | 75529 | 81823 |
| JGK-8 | 7.7 | 55138 | 62030 | 68922 | 75814 | 82706 | 89599 |
| JGK-9 | 9.0 | 64976 | 73098 | 81220 | 89342 | 97464 | 105585 |
| JGK-10 | 10.6 | 76254 | 85785 | 95317 | 104849 | 114380 | 123912 |
| JGK-12 | 11.7 | 84206 | 94732 | 105258 | 115784 | 126309 | 136835 |
| JGK-14 | 14.3 | 103197 | 116096 | 128996 | 141895 | 154795 | 167310 |
| JGK-16 | 16.1 | 115581 | 130029 | 144476 | 158924 | 173372 | 188370 |
| JGK-18 | 17.8 | 127991 | 143990 | 159989 | 175988 | 191987 | 208260 |
| JGK-20 | 19.5 | 140376 | 157923 | 175470 | 193017 | 210564 | 228150 |
Functional segment size table (mm)
| Unit model | JGK-0.5 | JGK-1 | JGK-1.5 | JGK-2 | JGK-2.5 | JGK-3 | JGK-3.5 | JGK-4 | JGK-4.5 | JGK-5 | JGK-5.5 | JGK-6 | JGK-7 | JGK-8 | JGK-9 | JGK-10 | JGK-12 | JGK-14 | JGK-16 | JGK-18 | JGK-20 |
| Nominal air volume (m³/h) | 5000 | 10000 | 15000 | 20000 | 25000 | 30000 | 35000 | 40000 | 45000 | 50000 | 55000 | 60000 | 70000 | 80000 | 90000 | 100000 | 120000 | 140000 | 160000 | 180000 | 200000 |
| New return air mixing section | 600 | 600 | 800 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Plate filter section | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Bag filter section | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Automatic dust cleaning coiled filter section | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Chemical filtration section | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Electronic purification section | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Fresh air and exhaust section | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1600 | 1600 | 1600 | 1600 | 1600 | 1800 | 1800 | 1800 |
| Indirect evaporative cooling section | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Direct evaporative cooling section | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Surface cooling section | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Steam and hot water heating section | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 600 | 600 | 600 | 600 | 600 |
| Electric heating section | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Humidification section | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| muffler section | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
| fan section | 1300 | 1450 | 1550 | 1650 | 1800 | 2100 | 2100 | 2300 | 2300 | 2650 | 2650 | 2850 | 2850 | 3000 | 3000 | 3400 | 3400 | 3700 | 3000 | 3400 | 3400 |
| middle section | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| other | The length of the heat recovery section and dehumidification section of the runner needs to be determined according to the specific situation. | ||||||||||||||||||||
JPAC focuses on providing high-quality combination heating air conditioning units and excellent service since 1982. We are a professional combination heating air conditioning units manufacturer and factory of 43000M2 which mainly produce central air conditioning units and dust collector products for around 44 years’ experience. JPAC provides you with combination heating air conditioning units wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about combination heating air conditioning units, combined air conditioning unit, air conditioning unit, combination heating and air conditioning units， please don't hesitate to contact us at any time. We will provide detailed information and technical support about central air conditioning units and dust collectors’ features, specifications, solutions and customization options... Welcome you to visit our factory!
